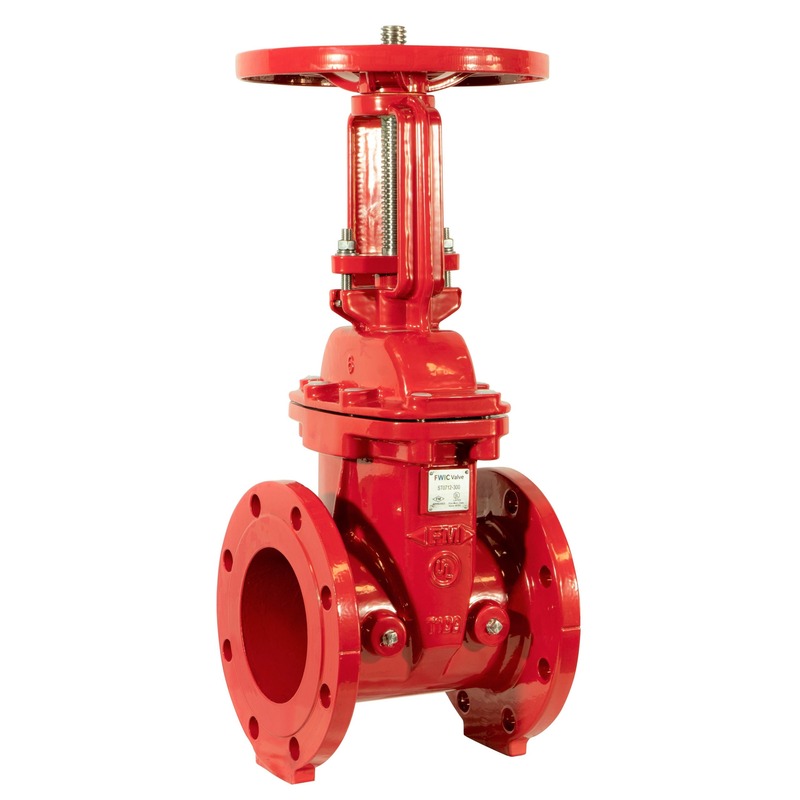

Resillient Seated OS&Y Gate Valve, is the firefighting valve that plays an important role in fire protection. To install the water main for fire protection it is essential to choose the right gate valve for the building. Resilient Seated OSandY Gate valve is generally used to control water flow to fire sprinkler systems, these valves operate by opening and closing via a gate. This will be done with the help of a hand wheel which lowers into and rises out of the valve.
Previous product
Back to products
FWIC - Resillient Seated OS&Y Gate Valve, Flanged End - ST0712-250
AED 9,821.70 – AED 17,980.20 VAT included
Next product
FWIC - Resilient Seated OS&Y Gate Valve, Groove End - ST0713-300
AED 573.30 – AED 4,622.10 VAT included
FWIC – Resillient Seated OS&Y Gate Valve, Flanged End – ST0712-300
AED 597.45 – AED 5,048.40 VAT included
FWIC – Resillient Seated OS&Y Gate Valve, Flanged End – ST0712-300
Product Code : fs0504383
Brand: FWIC
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Specifications
- Brand: FWIC
- Model: ST0712-300
- Size: 2 to 12 inches
- Body: Ductile Iron
- Wedge: Ductile Iron EPDM Coated
- Wedge Nut Stainless Steel
- Stem: Stainless Steel
- Gasket: EPDM
- Bonnet: Ductile Iron
- Packing: Graphite
- Stem: Nut Bronze
- Handwheel: Ductile Iron
- Working: 300PSI
- Certificate: UL/FM Approved
Features
- The flange-by-flange model features tapping boss locations, which allow for easier, faster connection of additional components
- OS&Y Gate Valve incorporates a unique design feature that provides a backup sealing device for the O-ring stem
- A fully encapsulated EPDM ductile iron wedge is intended to achieve bubble-tight sealing
- Lightweight ductile iron body that weighs less than conventional cast iron valves
- UL Listed and FM Approved to help ensure dependability
