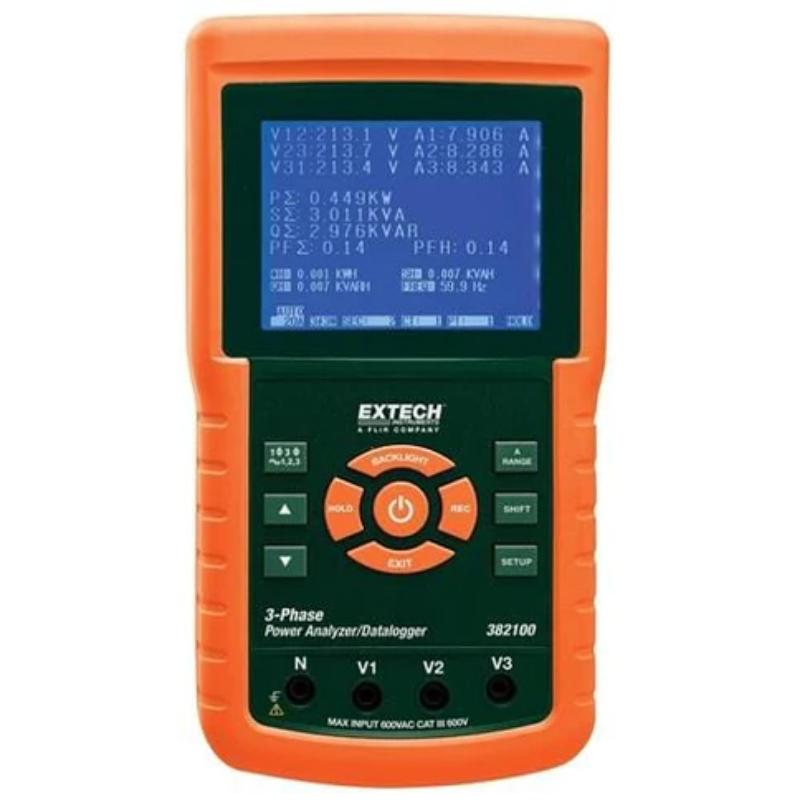

Extech – 1200A 3-Phase Power Analyzer/Datalogger – 382100
AED 9,840.00 VAT included
Extech – 1200A 3-Phase Power Analyzer/Datalogger – 382100
Product Code : fs0506631
Brand: Extech
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

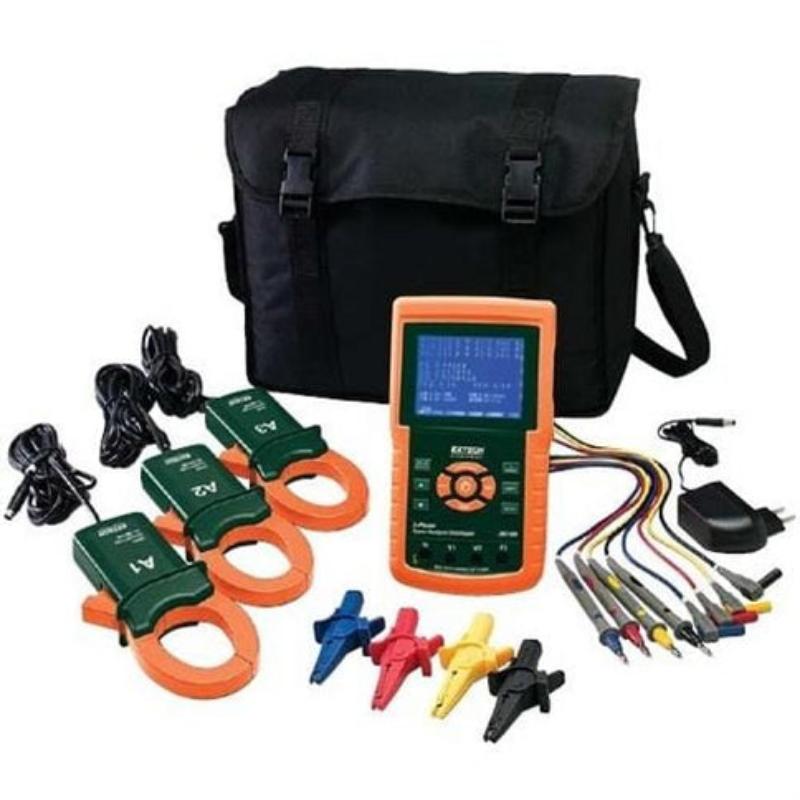

The 382100 is a 3-Phase Power Analyzer/Datalogger that saves data (up to 30,000 sets of measurements) on an SD card in Excel format for easy transfer to your PC. It provides a full system analysis with up to 35 parameters including: V (phase-to-phase), V (phase-to-ground) – A (phase-to-ground), KW / KVA / KVAR / PF (phase), KW / KVA / KVAR / PF (system), KWH / KVAH / KVARH / PFH (system), and Phase Angle. Readings are displayed on a large, dot matrix, sun-readable, backlit LCD. Comes with three current clamps, four voltage leads with alligator clips, eight AA batteries, SD memory card, Universal AC adapter (100 to 240V), case, and user manual.
Features
- Single phase, 3-phase/3-wire or 3-phase/4-wire systems
- Large backlighting LCD displays 35 parameters simultaneously (MW, kVAR, MVA, PF plus the voltage and current of the 3 phases)
- Displays Active Power (kW), Apparent Power (kVA), Reactive Power (kVAR) and Power Factor
- Current measurements to 1200A and Voltage measurements to 600V
- MWH, MVAh, MVARh energy measurements
- Adjustable CT ratio (1 to 600) and PT ratio (1 to 1000)
- Automatically logs up to 30,000 sets of measurements with 2GB SD memory card
- User-programmable sampling time from 2 to 7200 seconds
Specifications
- Brand: Tekneka
- Product: 1200A 3-Phase Power Analyzer/Datalogger
- Model: 382100
- ACV (True rms): 600.0V
- ACA: 1200A
- Active Power (MW): 9.999MW
- Apparent Power (MVA): 9.999MVA
- Reactive Power (MVAR): 9.999MVAR
- Power Factor: 0.00 to 1.00
- Frequency Range: 45Hz to 65Hz
