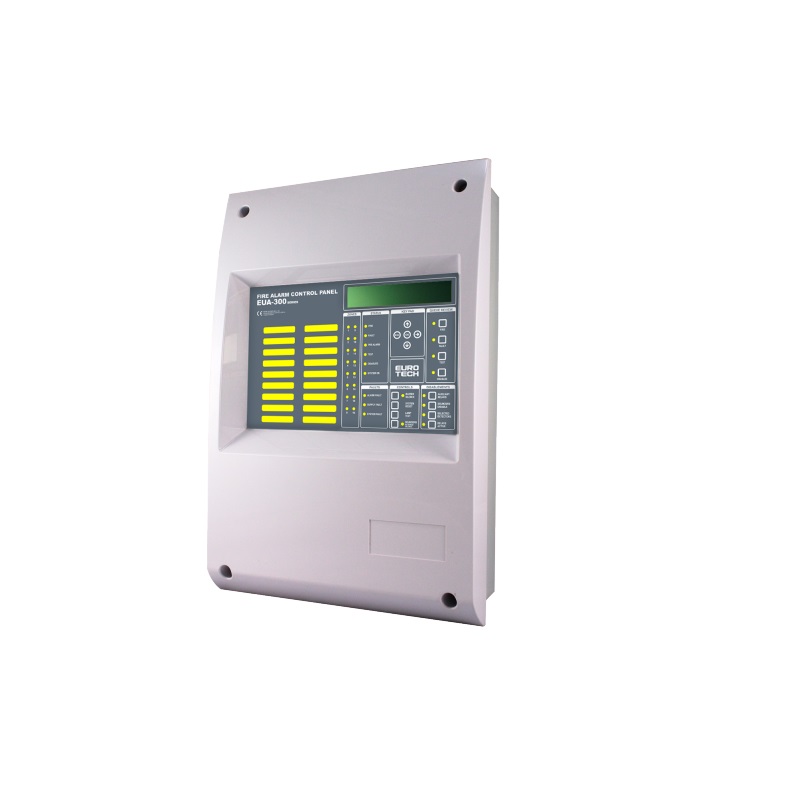

EuroTech EUA-302 2Loop Analogue Addressable Control Panel which can be expanded to two loops. It provides a cost-effective solution for small to medium-sized installations. EUA-300 can support up to 125 addressable devices on each loop.
Previous product
Back to products
EuroTech EUA-301 Single Loop Analogue Addressable Control Panel
AED 2,388.75 VAT included
Next product
EuroTech EUC-101 One Zone Conventional Fire Alarm Control Panel
AED 420.00 VAT included
EuroTech EUA-302 2Loop Analogue Addressable Control Panel
AED 2,782.50 VAT included
Specifications
- Product: 2 Loop addressable fire alarm control panel
- Model: EUA-302
- Supply Voltage: 230+10%-15% V AC
- Supply Current: 2.4A @ 2.85 V DC nominal(max)
- Internal Battery Capacity: 2 x 12 v 7Ah Sealed VRLA Lead Acid Batteries
- Loop Current Drive: 2.5mA/Loop
- Dimensions: 272(w) x 404 (H) x 107 (D) mm
- Weight: 2.0Kg - 7 Kg (inc. 2x7 AH 12 V bat.)
Features
- PC Graphics package EUN-GDMS for alarm management and reporting (optional)
- Supports connection to EUAR-300 via RS422/485, Fibre Optic or TCP/IP interfaces
- PC Programming using Upload/Download EUN-GDMS Connector Software
- 2 Fire output relays (change-over) and 1 Fault relay (Normally closed)
- Single loop panel - Expandable to two Loops using EUALC-300 Card
- 2 Conventional alarm outputs (Individually programmable)
- 32 Individually programmable sounder addresses per Loop
- Backlit LCD display with 4 rows of 40 characters
- Integrated 16 zone LED fire zone indication
- 125 Device addresses per loop
