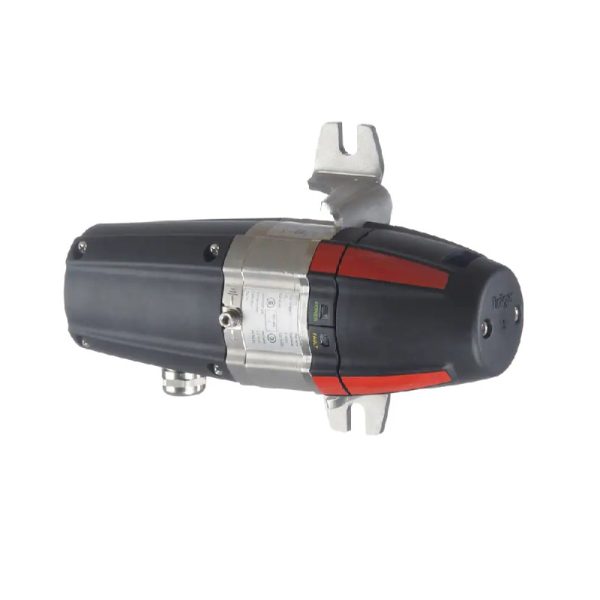

Dräger PIR 7000 type 334 (M25) HART Complete Set With Ex e junction box incl. M20 cable gland, splash guard, status indicator, and mounting set, are already pre-assembled. The Dräger PIR 7000 is an explosion-proof point infrared gas detector for continuous monitoring of flammable gases and vapours. With its stainless steel SS 316L enclosure and drift-free optics, this detector is built for the harshest industrial environments, e.g. offshore installations.
Previous product
Back to products
BW Technologies BWC2R-S BW Clip Single Gas SO2 Detector
AED 1,386.00 VAT included
Next product
Tyco 601PH-M Conventional Marine Fire Detection Optical Smoke Detector
AED 472.50 VAT included
Dräger PIR 7000 type 334 (M25) HART Complete Set
AED 16,800.00 VAT included
Specifications
- Product: Explosion proof gas transmitter with infrared sensor technology
- Brand: Drager
- Model: PIR 7000
- Principle of operation Temperature-compensated infrared absorption, 4-beam technology
- Power supply: 13 to 30 V DC, 3-wire
- Material: Stainless steel SS 316L
- Connecting thread: M25 or ¾'' NPT
- Power consumption: 5.6 W (typical)
- Dimensions: 160 mm x Ø 89 mm / 6.3 '' x Ø 3.5 ''
- Weight: 2.2 kg (without accessories)
Features
- Configurable gas library – methane, propane and ethylene fixed, up to 10 additional substances can be uploaded
- Developed and manufactured according to the SIL guidelines, SIL 2 certified by TÜV
- Multiple mounting and configuration capabilities (signals acc. to NAMUR NE 43)
- Beam block warning in case of dirty optics for preventive maintenance
- Double-compensating, non-imaging optics (using 4-beam technology)
- Continuous self-testing in the context of the IEC/EN 61508 standard
- Single cable multidrop capability using HART® communication
- Extended temperature range of up to + 77 °C / + 170 °F
- Conventional 4-to-20-mA analogue signal output
- Resistant towards shock and vibration up to 4 G
