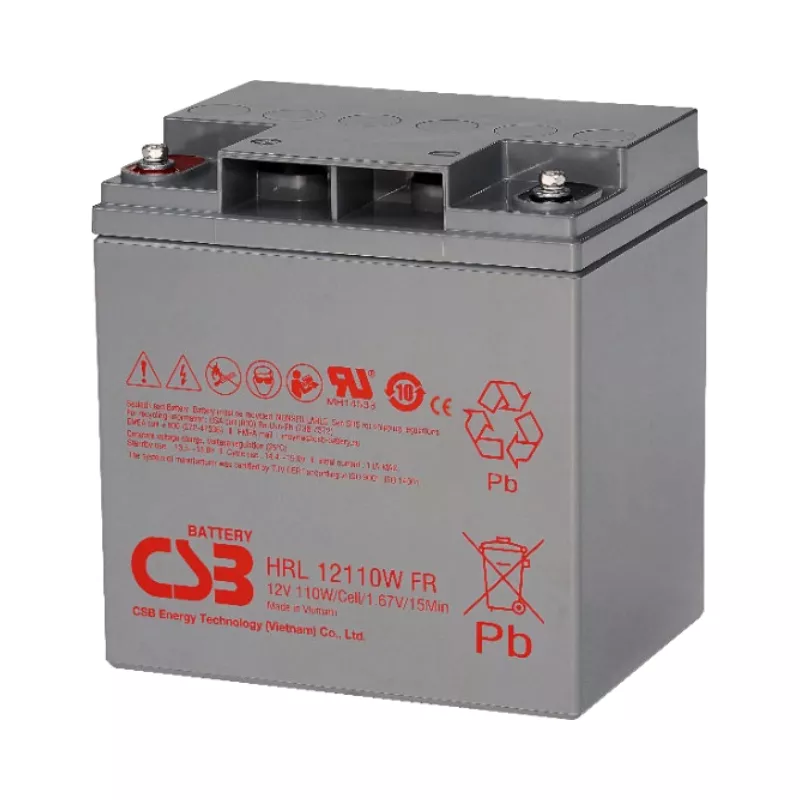

CSB HRL12110WFR – 12V 110W High-Rate Long Life VRLA-AGM Battery
AED 477.02 VAT included
12V 110W @15min-rate High-Rate Long Life sealed lead-acid battery with AGM technology for reliable backup power applications.
Description
The CSB HRL12110WFR is a premium 12V VRLA (Valve Regulated Lead Acid) battery from the HRL Series. With a capacity of 110W @15min-rate, this maintenance-free battery features advanced AGM (Absorbent Glass Mat) technology ensuring up to 99% gas recombination efficiency. Constructed with pure lead elements and proprietary materials, it delivers reliable performance with a design life of up to 10 Years in standby service at 25°C. The battery features I1 Thread Lead Alloy M5 Bolt terminals, weighs 9.90 kg (21.82 lbs), and measures 166.0×125.0×175.0mm. Ideal for Premium UPS systems, data centers, critical power backup. Built to IEC 61056-1/2:2012 standards and UL1989 recognized (MH14533). Operating temperature range: -15°C to 50°C discharge, -15°C to 40°C charge/storage. Float charging voltage: 13.5-13.8 VDC. Maximum discharge current: 225A, with internal resistance of approximately 8.10 mΩ.
Features
- VRLA (Valve Regulated Lead Acid) Technology
- AGM (Absorbent Glass Mat) with 99% Gas Recombination
- Maintenance-Free Sealed Construction
- Pure Lead Construction for Enhanced Performance
- Design Life: Up to 10 Years at 25°C
- Wide Operating Temperature: -15°C to 50°C
- UL1989 Recognized (MH14533) Certified
- IEC 61056-1/2:2012 Compliant
- Spill-Proof and Leak-Proof Design
- Low Self-Discharge Rate (Less than 10% after 90 days)
Specifications
- Model: CSB HRL12110WFR
- Series: HRL Series
- Voltage: 12V
- Capacity: 110W @15min-rate
- Weight: 9.90 kg (21.82 lbs)
- Dimensions (L×W×H): 166.0×125.0×175.0mm
- Terminal Type: I1 Thread Lead Alloy M5 Bolt
- Max Discharge Current: 225A
- Internal Resistance: 8.10 mΩ
- Float Charging Voltage: 13.5-13.8 VDC at 25°C
