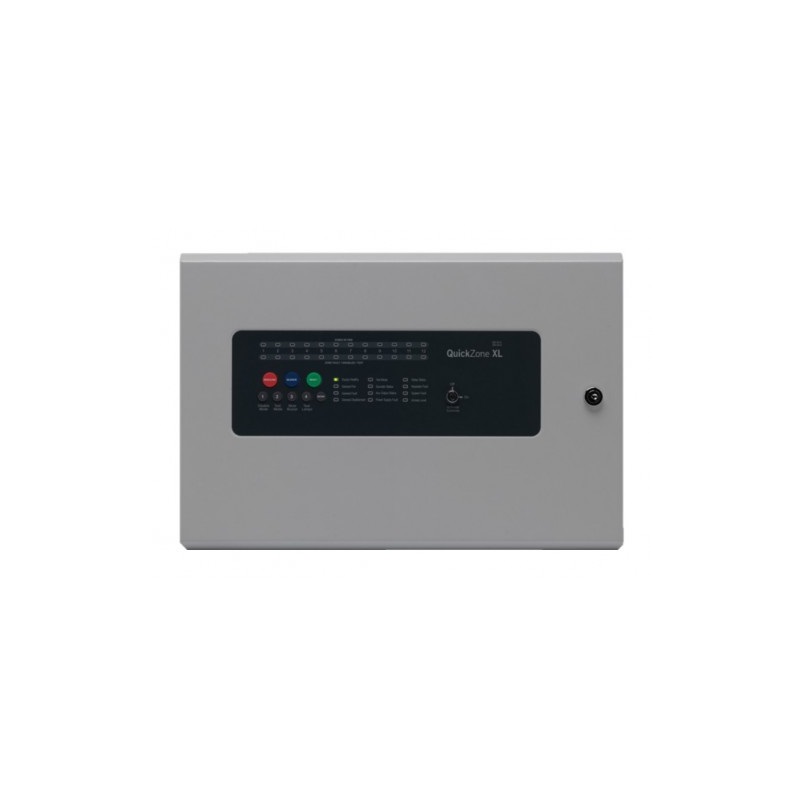

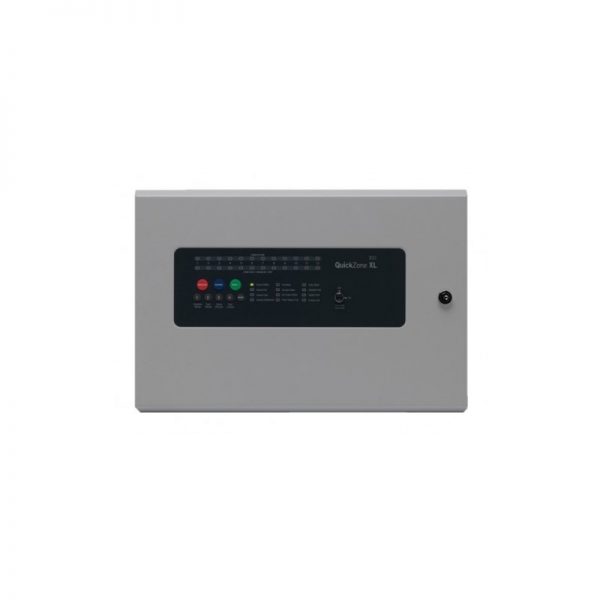

Advanced QuickZone QZXL-4 Conventional Control Panel – XL 4 Zone
See all products from advancedAED 2,139.76 VAT included
Advanced QuickZone QZXL-4 Conventional Control Panel – XL 4 Zone is up to 12 zone Conventional / Twin Wire (sav-wire) control panel with integral power supply & space for standby batteries. The panel continues the attributes of quality and reliability, that is easy to install, maintain, and is simple to operate for the end user. Up to 12 fire zone circuits are provided plus two monitored sounder circuits. Fire and fault VFCO relays, Fire & Fault switched negative outputs; class change and an alert input are also included.
Product Code : fs1118212
Brand: Advanced
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Advanced QuickZone QZXL-4 Conventional Control Panel – XL 4 Zone is up to 12 zone Conventional / Twin Wire (sav-wire) control panel with integral power supply & space for standby batteries. The panel continues the attributes of quality and reliability, that is easy to install, maintain, and is simple to operate for the end user. Up to 12 fire zone circuits are provided plus two monitored sounder circuits. Fire and fault VFCO relays, Fire & Fault switched negative outputs; class change and an alert input are also included. The fire zone outputs can be set as ‘Twin Wire’ by DIL switch selection. The DIL switches are also used to allow Zone interface setting and Access to Level 3 mode. In Level 1, the panel will indicate if there are any faults (Supply, Fire, System, General & repeater). As well as this, the panel is capable of indicating zones in Fire, Fault and disablements and delay status. Auxiliary Output and Sounder status will be shown including if the panel is in test mode.
Features
- 2 Additional sounder circuits with high spec expansion card
- Alarm load of 2.4A shared across all sounder outputs
- Key-switch or code entry for activation of controls
- Two monitored sounder circuits fitted as standard
- Class Change & Alert programmable inputs
- Modular expansion zone cards available
- Test Mode (with or without sounders)
- Can support up to 8 repeater panels
- Integral detector removal monitoring
- Programmable relays and outputs
Specifications
- Product: 4 Zone Conventional Control Panel
- Brand: Advanced
- Model: Quickzone QZXL-4
- LED Indicators: 13 Red (1xFire, 12xZonal) 1 Green (power) 22 Amber (12xZonal 10 Fault & System)
- Controls: 3 Colour coded buttons (Resound, Silence & Reset), 1-4 numerical buttons and Enter
- Programming: Via on-board buttons
- Zonal Circuit Configuration: Conventional or Twin Wire (Selectable by DIL switches)
- Number of Fire Zones: 4 to 12 (dependant on product and expansion)
- Mains Supply: 230V 50Hz (+10%, -15% tolerance) 1.2A Max.
- Enclosure/Colour: Lockable, Steel IP30 / RAL7035
- Size H x W x D (mm): Back box 300x450x85, Door 310x460x25 (Return)
- Battery Capacity: 2x7.0Ah (Internal 12V SLA)
- Approvals: EN54-2:1997 + A1:2006 & EN54-4: 1997 + A1:2002 + A2:2006
