The VESDA VLP by Xtralis is the flagship of the VESDA aspirating smoke detector product line. Using unique detection principles, the VLP has an alarm sensitivity range of 0.005%-20% obscuration/m (0.0015%-6.25% obscuration/ft). The detector can form part of a modular system with the display, programmer and VESDAnet modules installed in a remote location or as a self-contained system by replacing the detector’s panels with display and/or programmer modules. With the display and programmer remote, the user interfaces for many Xtralis VESDA VLP detectors can be grouped together in a cabinet for easy programming.
Previous product
Back to products
Okaya SMF OB 18-12 VRLA 12V, 18Ah Battery For UPS/Backup Application
AED 127.58 VAT included
Next product
Fire Chief 1Mx1M Fire Blanket In Rigid Case
AED 142.80 VAT included

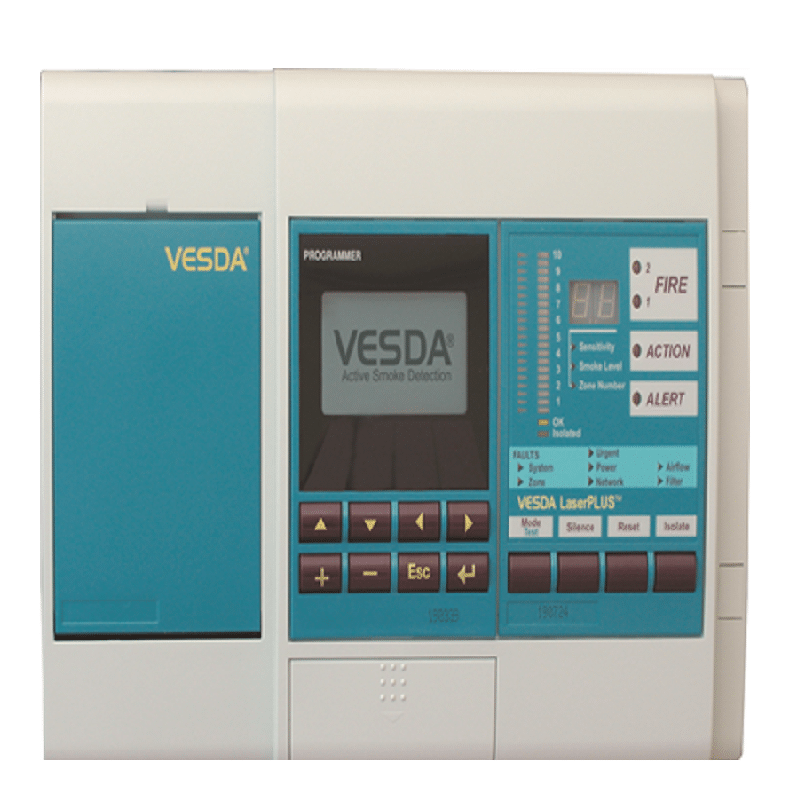

Vesda VLP-012 Detector + Programmer + Display
AED 17,192.35 VAT included
The VESDA VLP by Xtralis is the flagship of the VESDA aspirating smoke detector product line. Using unique detection principles, the VLP has an alarm sensitivity range of 0.005%-20% obscuration/m (0.0015%-6.25% obscuration/ft). The detector can form part of a modular system with the display, programmer and VESDAnet modules installed in a remote location or as a self-contained system by replacing the detector’s panels with display and/or programmer modules.
Product Code : FS107902
Brand: Vesda
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Specifications
- Supply Voltage: 18-30 VDC
- Dimensions (WHD): 350 mm x 225 mm x 125 mm (13.8 in x 8.9 in x 4.9 in)
- Weight: 4.0 kg (9 lbs) including Display and Programmer modules
- IP Rating: IP30
- Operating Conditions: Tested to: -10°C to 55°C (14°F to 131°F); Detector Ambient: 0°C to 39°C (32° to 103°F) (Recommended); Sampled Air: -20° to 60°C (-4° to 140°F)
- Humidity: 10%-95% RH, non-condensing
- Storage Conditions (non-operational): Battery life: Up to 2 years; Humidity: Dry (<95%); Temperature: 0° to 85° C
- Aggregate pipe length: 200 m (656 ft)
- Maximum Single Length: 100 m (328 ft)
- Minimum flow per pipe: 15 liters/min.
- Pipe Modelling Design Tool: ASPIRE
- Area Coverage: Typically up to 2000 m2 (21520 sq. ft.), depending on local codes and standards
- Cable Access: 8 x 25 mm (1 in) knockouts in various positions
- Cable Termination: Screw terminals 0.2-2.5 sq mm (30-12 AWG)
- Alarm Sensitivity Range: 0.005%-20% obs/m (0.0016%-6.25% obs/ft)
Features
- Wide sensitivity range
- Laser based smoke detection
- 4 configurable alarm levels
- High efficiency aspirator
- Four inlet pipes
- Airflow supervisor per sampling pipe
- Clean air barrier optics protection
- Easy to replace air filter
- 7 programmable relays
- VESDAnet, AutoLearn, Referencing, Event log, Modular design, Recessed mounting option
