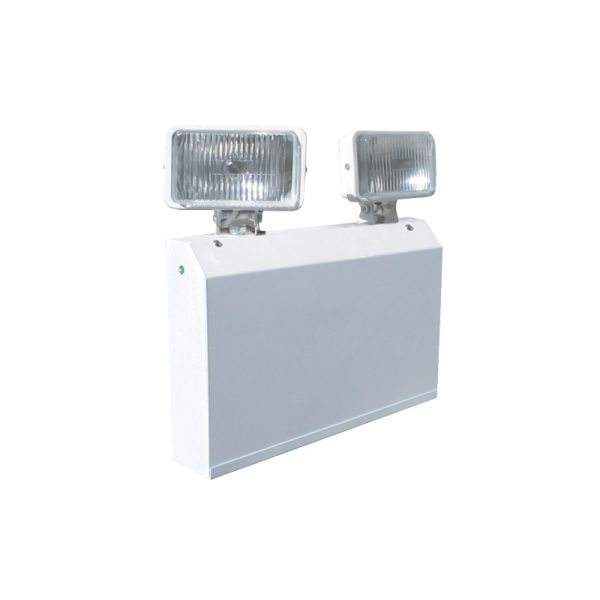

Ventilux CTL20/NM3 LED 2X20W Twin Spot Self Contained Emergency Light(Obsolete Model – CTL20/NM3 is no longer available)

VAT included

Build Enquiry List

Compare

Build Enquiry List

Product Code : fs05024329 Seller: Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Ventilux CTL20/NM3 LED Twin Spot Self Contained Emergency Light specifically designed to provide emergency lighting in high bay industrial areas, factories or large warehouses where there is a requirement to project high-intensity beams between the racks and equipment to illuminate walkways and assist safe evacuation in case of emergency. Non-maintained Self Contained 2X20W Tungsten Halogen Lamp, IP40, 300 lumens per lamp, 3000K, 3Hr Backup

Features

Automatic, current limited, constant voltage charger with LED indication of correct functioning and lamp filament integrity.
Self Contained tungsten halogen twin 20 watt projector luminaire with gas recombination, 12V sealed lead acid battery.
Emergency escape routes between aisles in warehouse can be illuminated without low level conventional luminaires.
Housing and diffuser meets the 8500C glow wire test making the unit suitable for defined escape routes.
Robust construction designed to meet current and future EU product standards
Non-maintained operation to provide Emergency Lighting for 3 hour duration.
100% rated lumen output from Tungsten Halogen in emergency operations
Additional remote lamp heads and mounting brackets can be provided.
Suitable for large open areas and high level installation.
3 year product warranty as standard.

Specifications

Product: Self Contained Twin Spot Emergency Light
Brand: Ventilux
Model: CTL20/NM3
Mode of operation: Non-maintained
Input voltage range: 230V - 240V, +6% -10%, 50/60Hz
Lamp(s): 2 * 20 watt tungsten halogen lamp.
Power consumption: 24VA for the first 24 hour charge. 2VA for fully charged batteries
Battery type and value: 2 * 12 volt 7.0 A/h Sealed Lead Acid batteries.
Recharge Period: 24 hours full recharge 14 hours for 1 hour recharge
Emergency Duration: 180 minutes
