Unipolar Earthing Device

Name: Unipolar Earthing Device
SKU: fs05023865
Price: 3779.10 AED
Availability: InStock

AED 3,779.10 VAT included

Compare

Product Code : fs05023865 Seller: Fireshop1001Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

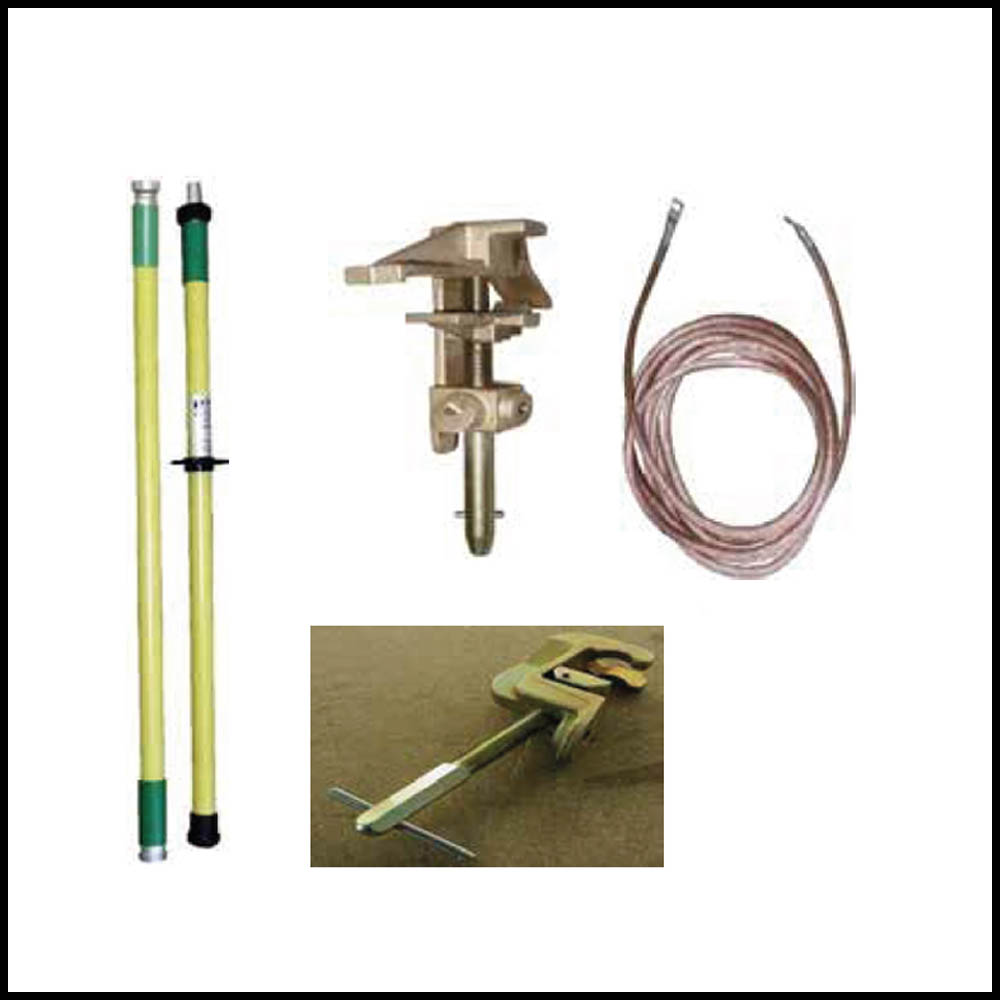

PC/BM-DIN Screw type universal contact clamp made by press forged brass tested for high intensity current. DIN attack tang and screw clamping made by galvanized steel.Possibility to connect the copper cable in three different positions. Extra flexible electrolytic copper cable covered by transparent PVC sheath, section 70mmq, and length 6 m., complete at the extremities of tinning copper lugs and reinforcements by transparent heat-shrink sheath.Ground clamp for ball fixed point MT25. Body and plug made by press forged brass tested for high intensity current. Galvanized steel screw clamping with metallic handle.

Features

High insulating rod made by polyester resin reinforced by fibreglass tube, external diameter 40mm, yellow colour.
Quick couplers to connect the two elements.
Insulating lower closing cap and hand guard onto the base element
Aluminium bayonet DIN attack, closing cap and hand guard.
IN CONFORMITY WITH INTERNATIONAL STANDARD IEC 61230

Specifications

Product: Unipolar Earthing Device
Model No. P2/300DIN
Icc of complete device 15,1 kA/1s
Conductors 5-40 mm diameter
Bars on horizontal level 12x60 mm
Note: the contact clamps od earthing device are installed on the phase by an insulating rod so, it is Not an option. SPEC SHEET ATTACHED.
