Description

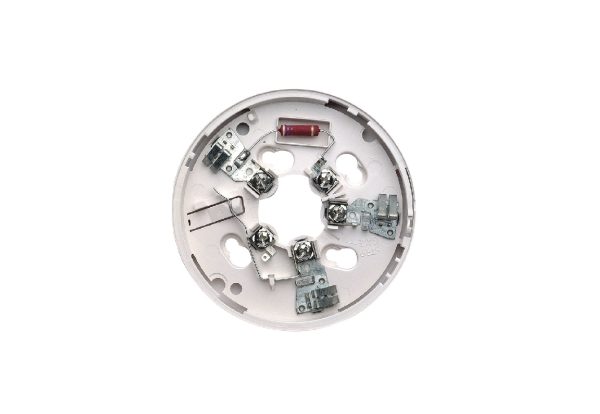

System Sensor B401 Plug-In Detector Base is used with System Sensor smoke and heat detector heads. The capability of plugging these detectors into a variety of special bases makes them more versatile than equivalent direct-wired models. The B401 base is intended for use in 2-wire systems, with screw terminals provided for power and remote annunciator connections.
Features
- The B401 base can be mounted on a variety of surfaces, including walls and ceilings, depending on the specific requirements of the installation
- The B401 base is designed to be used with certain System Sensor smoke and heat detectors, such as the 200 Series detectors
- It provides a secure connection between the detector and the wiring in the fire alarm system
- It allows for quick and simple installation and maintenance of the connected detector
- The compatible detectors are inserted into the B401 base and are secured in place
- The base provides both power and communication connections to the detector
- This design simplifies the process of replacing detectors when necessary
- The term "plug-in" indicates that this base is easy to install and remove
- The base includes terminals for wiring connections
- Brand: System Sensor
Specifications
- Model: B401
- Product: Detector Base
- System Voltage: 12/24 VDC
- Maximum Ripple Voltage: 4 Volts peak to peak
- Start-up Capacitance: 0.02 µF Maximum
- Reset Voltage: 2.5 VDC Minimum
- Base Diameter: 10.2 cm (4.0 inches)
- Base Height: 2.0 cm (0.8 inches)
- Weight: 152 g (0.34 lb)
