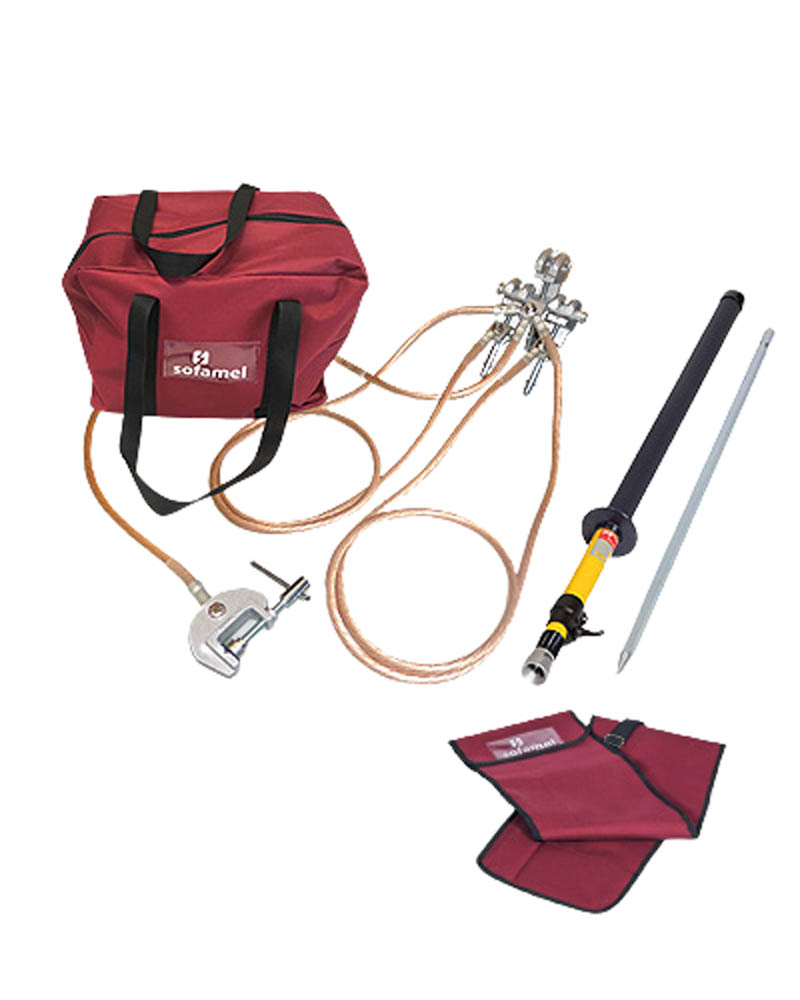

Sofamel 662 PATL-MPLB Medium Voltage Overhead Lines – Screw Clamps

Name: Sofamel 662 PATL-MPLB Medium Voltage Overhead Lines - Screw Clamps
SKU: fs0502846
Availability: InStock

AED 6,814.50 VAT included

In stock

Compare

Product Code : fs0502846 Seller: Fireshop1001Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Earthing and short-circuit equipment for medium voltage overhead lines.The main aim for its installation is operator?s protection against an accidental commissioning or possible voltage return during repair operations. The MPL clamp is fixed on bare conductors by screw-tightening. This equipment has got a MPLP clamp (carrier) which facilitates the lifting and placing of the three clamps at the same time reducing installation time considerably.

Features

2 MPL aluminium alloy clamps with screw tighten for cylindrical conductors with diameter between 5 and 45 mm.
1 MPLP aluminium alloy clamp (carrier) with screw tighten for cylindrical conductors with diameter between 5 and 45 mm.
2 copper cables with PVC insulation of 70 mm? section and 2.5 m long.
1 copper cable with PVC insulation of 70 mm? section and 15 m long.
1 TT-50 milling earthing lathe.
1 earthing rod.
1 telescopic pole (1.10 m folded and 2 m extended).
1 bag to store and transport the equipment.
