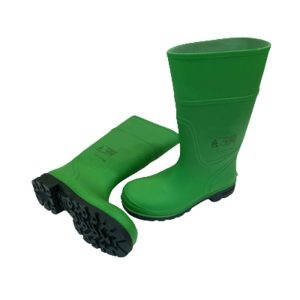

Sofamel 715 DB3 Dielectrics HV3+ Boots
Original price was: AED 1,076.25.AED 1,018.50Current price is: AED 1,018.50. VAT included
Next product
Sofamel 585 AD Insulating Mat Class 2
Price range: AED 99.75 through AED 2,257.50 VAT included
Sofamel 585 AD Insulating Mat Class 0, Thickness 2.20±0.30 mm, Work Voltage: 1kV
Price range: AED 99.75 through AED 2,173.50 VAT included

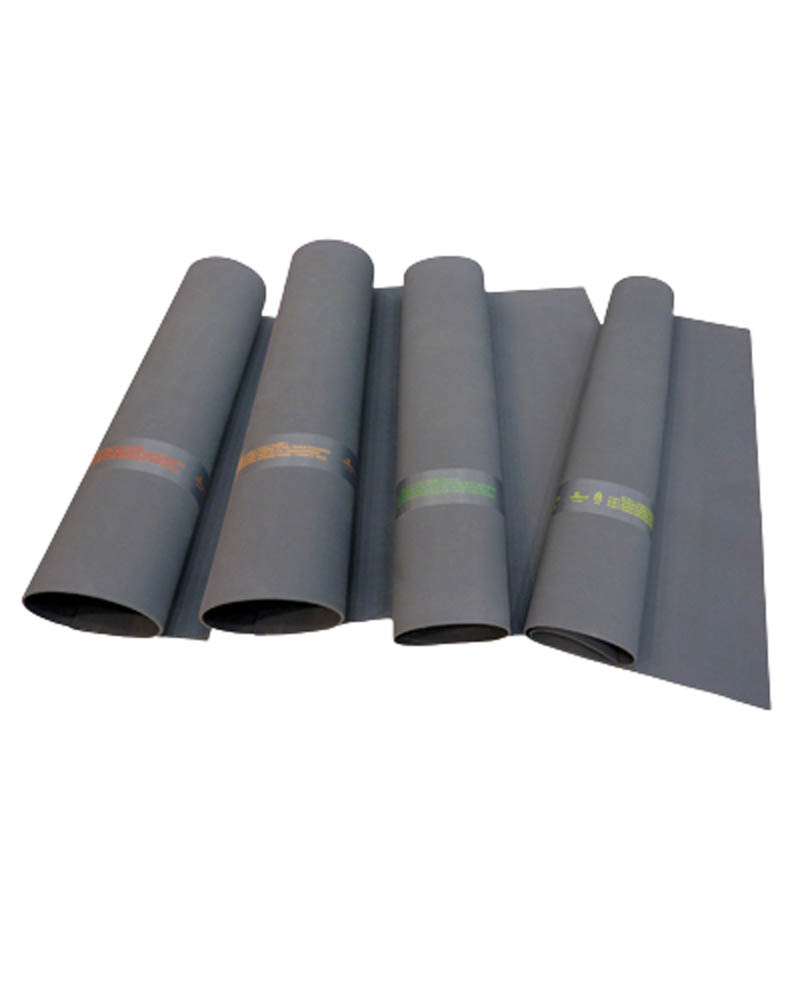

Sofamel 585 AD Insulating Mat Class 0
Product Code : fs0502989
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Electrical Insulation mats are made of rubber. Rubber, due to its properties of resistivity, is used in many industrial applications throughout industry to insulate and protect; it is an obvious choice for electrical safety matting and is tested vigorously to ensure the level of protection is met.
Work Voltage : 1 kV
Test Voltage: 5 kV
Supported Voltage: 10 kV
Certified:
According to the Standard IEC 61111: Live working – Electrical insulating matting.
Features
- Hardness: 71 Shore A
- Specific weight: 1.51 g/cm3 (specific gravity)
- Tensile Strenght: 75.5 Kg/cm2
- Elongation at break: 362%
- Resistance to tearing: 20 Kg/cm2
- Acids and Bases diluted - Moderate
- Hydrocarbon - Not recommended
- Organic solvents - Not recommended
Specifications
- Brand: Sofamel
- Model: 585-AD
- Material: Rubber
- Specific Rubber Base: Narural rubber SBR
- Hardness: 71 Shore A
- Tensile Strenght: 75.5 Kg/cm2
- Elongation at break: 362%
- Color: Grey
- Certificate: According to IEC 61111
- Thickness : 2.20±0.30 mm
