Description

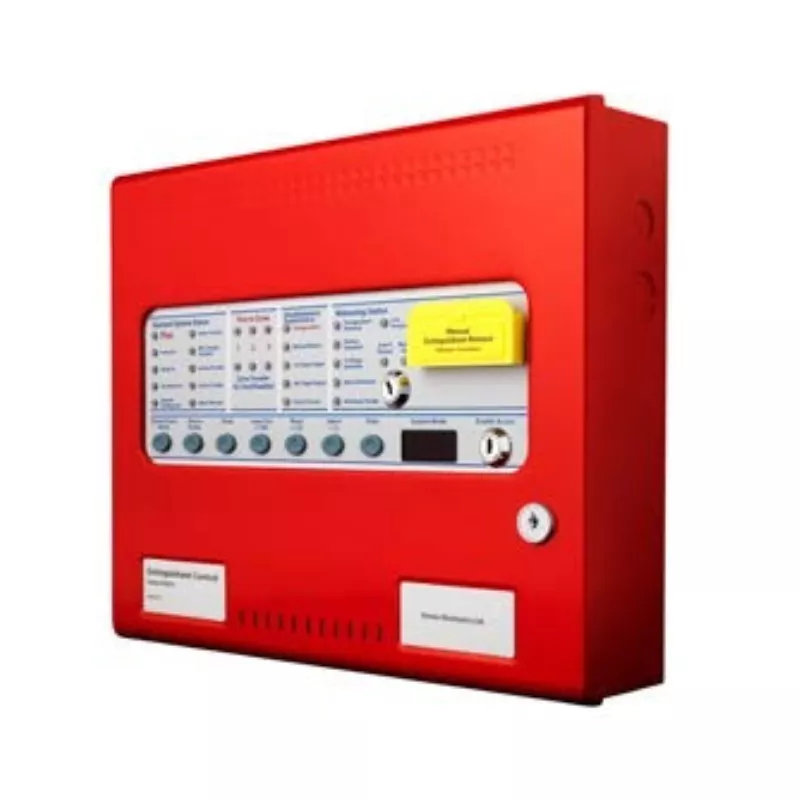

SIGMA A-XT is a high-performance extinguishant releasing control panel built for small to medium fixed firefighting systems. It is UL 864 and FM listed, with 3 initiating circuits as standard and flexible release logic (including coincidence detection options) for dependable suppression control.
It features configurable detection/release delays, countdown indication, extract fan control, and support for up to seven remote status units, making it ideal for clean agent and total flooding applications in critical facilities.
Features
- UL864 and FM listed releasing control panel
- 3 initiating circuits as standard
- Flexible release from single or combined zones
- Configurable first-stage NAC delays
- Configurable detection delays
- Manual release with zero time delay option
- Supports up to 7 remote status indicators
- Built-in extract fan control
- Adjustable extinguishant release delay (0-60 sec)
- Adjustable extinguishant release duration (60-300 sec)
Specifications
- Model - SIGMA A-XT
- Product Type - Extinguishant Control / Releasing Panel
- Certifications - UL864, FM Listed
- Initiating Circuits - 3
- NAC Circuits - 2 x 1st stage, 1 x 2nd stage
- Enclosure Size - 368 x 310 x 90 mm
- IP Rating - IP30
- Power Supply Options - 230V AC or 115V AC
- Battery Configuration - 2 x 12V 7Ah sealed lead-acid (series)
