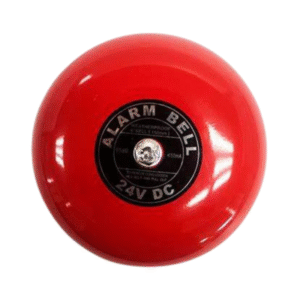

MAF Conventional Fire Alarm Bell 8"
AED 89.25 VAT included
Next product
Single Escutcheon Plate for Horizontal Sidewall Sprinkler 1/2"
AED 7.88 VAT included

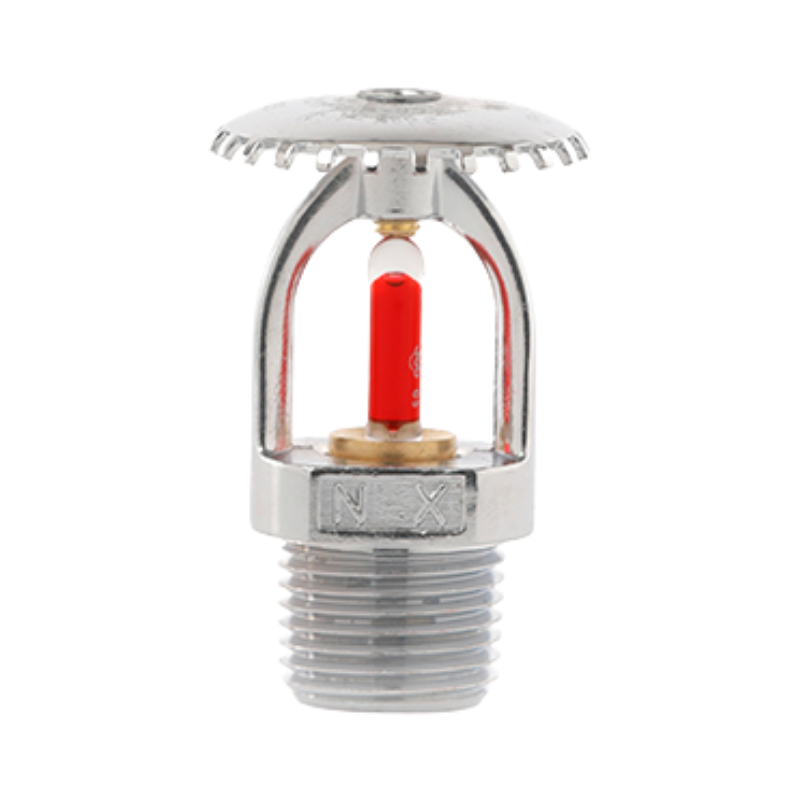

Shield SD1015 Standard Response Upright Sprinkler 79°C Chrome Finish (MOQ-4Pcs)
AED 27.30 VAT included
Upright sprinkler with 79°C temperature rating, standard response, and K-factor 5.6 (K80). Brass construction.
In stock
Product Code : fs0507596
Brand: Shield
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Shield SD1015 upright fire sprinkler features a 79°C glass bulb, standard response thermal element, and 1/2″ NPT male thread. K-factor 5.6 provides 80.0 L/min at 1 bar pressure. UL/FM approved for commercial applications.
Features
- 1/2" NPT male thread
- Upright installation only
- Standard response thermal element
- 79°C temperature rating
- DZR brass construction
- Chrome plated finish
- K-factor 5.6 (K80)
- UL/FM approved
- For light hazard areas
- Includes sealing diaphragm
Specifications
- Connection: 1/2" NPT male
- Orientation: Upright
- K-factor: 5.6 (K80)
- Temperature rating: 79°C
- Response: Standard (RTI =80)
- Body material: DZR brass
- Finish: Chrome plated
- Max working pressure: 12 bar
- Coverage area: 12.1m² (130ft²)
- Approvals: UL199, FM2000
