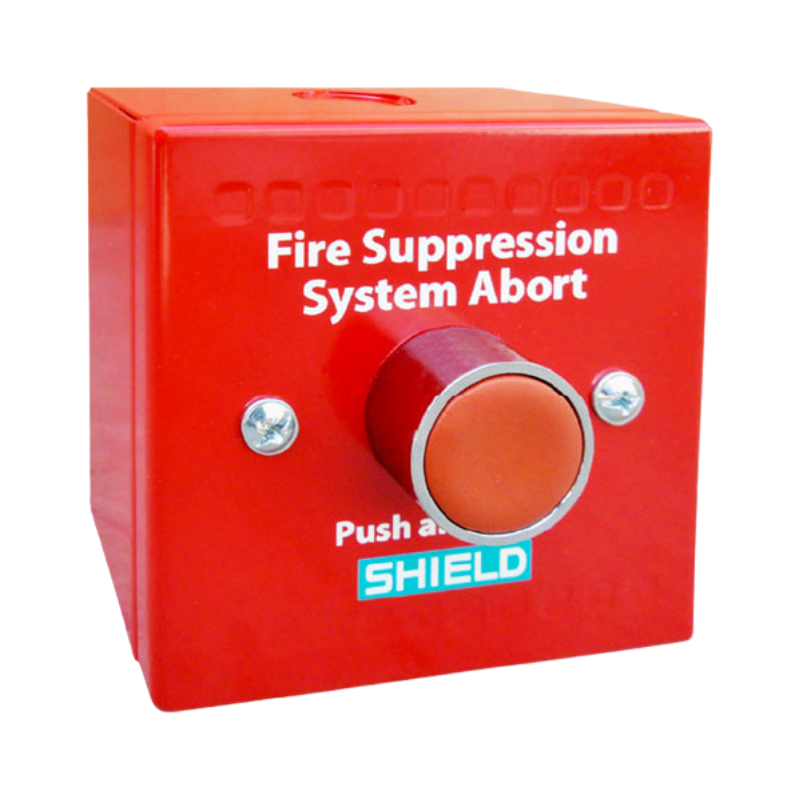

SHIELD Extinguishing Abort Switch SR111R-AB
AED 614.25 VAT included
Emergency abort switch for fire suppression systems with red vandal-resistant cover and key reset. EN 12094-1 certified.
In stock
Product Code : fs0507641
Brand: Shield
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The SHIELD SR111R-AB abort switch provides emergency interruption of fire suppression system activation. Features a durable metal housing, break-glass or push-to-activate mechanism, and visual status indication. For use with gaseous and chemical extinguishing systems.
Features
- Vandal-resistant stainless steel construction
- Key-operated reset
- Visual activation status indicator
- EN 12094-1 compliant
- IP66 rated enclosure
- Surface mounting
- SPDT contacts (5A @ 30VDC)
- Universal system compatibility
- Includes mounting hardware
Specifications
- Dimensions: 120mm × 80mm × 50mm
- Weight: 1.2kg
- Electrical Rating: 5A @ 30VDC
- Contacts: SPDT (Silver Alloy)
- Enclosure: IP66 Stainless Steel
- Operating Temp: -30°C to +70°C
- Mounting: Surface (included backbox)
- Standards: EN 12094-1, VdS
- Terminals: Screw Clamp (2.5mm² max)
