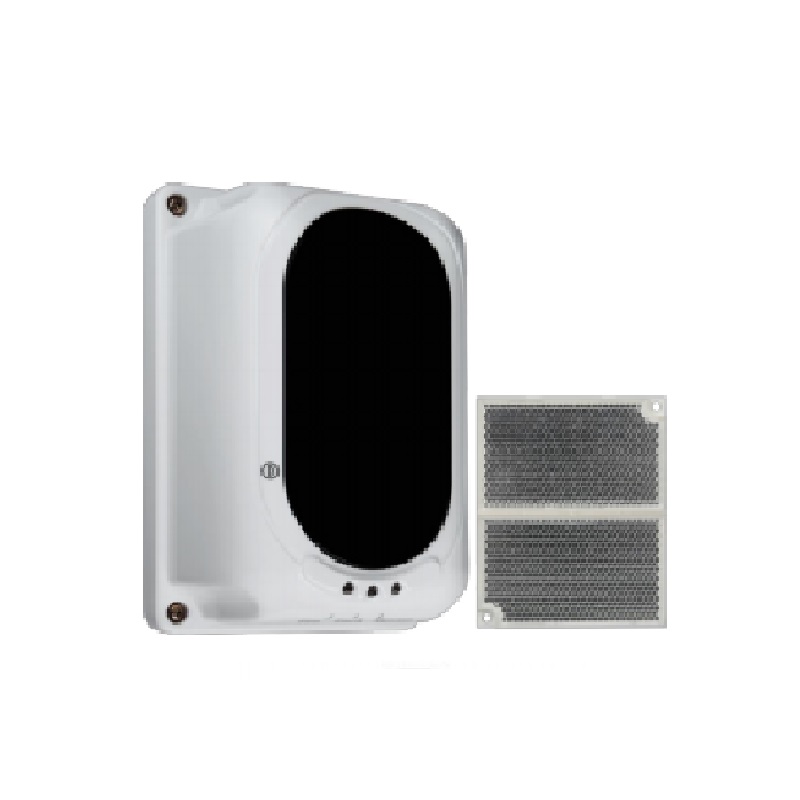

Ravel RE-438 Reflective Beam Detector has a built-in Laser beam pointing and Digital guide display for a real user-friendly alignment method. The Laser beam pointing accurately points the exact location where to mount mirror and with an additional digital guide, the display allows us to monitor and guide on the actual light intensity between the mirror and detector which cannot be seen by our naked eye making it more easy and convenient in alignment commissioning.
Previous product
Back to products
Uranus BMUV-MH-XQH- 350G-8" Flanged X Grooved End Swing Check Valve 350 PSI
AED 1,575.00 VAT included
Next product
Lalizas 72505 Fire Hose 2", Nakajima 50 Brass, 25m - Marine Approved
AED 509.25 VAT included
Ravel RE-438 Reflective Beam Detector
AED 913.50 VAT included
Specifications
- Product: Beam Detector
- Brand: Ravel
- Model: RE-438
- Operating Voltage : 20 - 28 V DC
- Reset Time : Less than 2 second
- Material / Colour : ABS / White
- Dimension(mm): L: 190.87 x W: 126.87 x H: 91.96
- Weight : 0.130 kg with base
- Ingress protection Rating : IP30[IP66 glue seal-for permanent fixing]
- Humidity : 0 - 95%
Features
- Automatic compensation for factors weakening received signals, such as dust contamination, positional movement and ageing of the transmitter
- Hassle free alignment, built with digital guide display and laser beam pointing.
- Four ranges wide monitoring from 8-100 meters via encoder.
- Employ single-ended design through reflective mirror.
- Self-diagnosis function can monitor for internal faults.
- Real User friendly alignment method.
- Attractive and pleasing appearance.
- Fire and Fault interfacing relays.
- Built-in microprocessor
- EN54-12 Compliance
