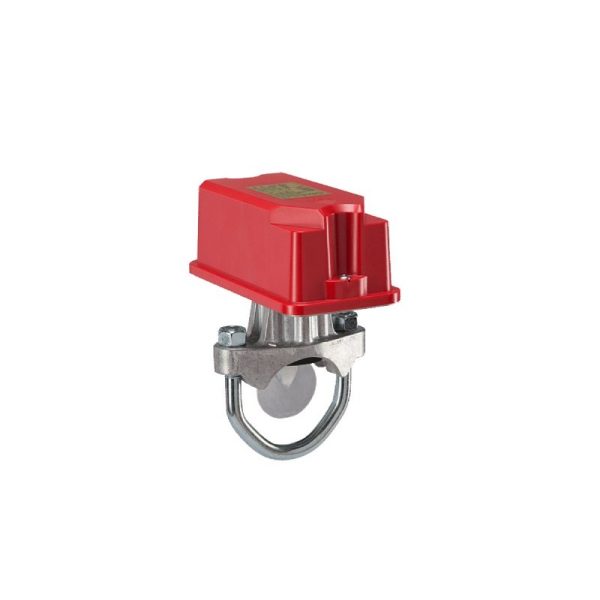

Rapidrop RDWFD Water Flow Detector consists of a rugged, NEMA 4-rated enclosure. Designed for both indoor and outdoor use, the WFD series operates across a wide temperature range, from 32°F to 120°F. UL-listed models are equipped with tamper-resistant cover screws to prevent unauthorized entry. Inside, two sets of SPDT (Form C) synchronized switches are enclosed in a durable terminal block to assure reliable performance. The WFD series incorporates a mechanical retard feature, which minimizes the risk of false alarms due to pressure surges or air trapped in the sprinkler system. In addition, the mechanical retard’s unique sealed design is immune to dust and other contaminants.
Previous product
Back to products
Rapidrop RDWFD Water Flow Detector 3 Inch
AED 420.00 VAT included
Next product
Rapidrop RDWFD Water Flow Detector 6 Inch
AED 420.00 VAT included
Rapidrop RDWFD Water Flow Detector 4 Inch
AED 420.00 VAT included
Specifications
- Product: Water Flow Detector
- Brand: Rapidrop
- Model: WFD
- PRESSURE RATING: 31 Bar (450 PSI)
- WORKING TEMPERATURE: 0°C to 49°C (32°F to 120°F)
- CONTACT RATINGS: Two sets of SPDT (Form C) 10.0 A, ½ HP @ 125/250 VAC 2.5 A @ 6/12/24 VDC
- PIPE SIZE: 4 Inch
- COMPATIBLE PIPE: Steel water pipe, schedule 10 through 40
- CONDUIT ENTRANCES: Two openings for ½˝ conduit. One open, one knock-out type
- APPROVALS: FM Approved, UL Listed
Features
- Designed for both indoor and outdoor use, the WFD series operates across a wide temperature range, from 32°F to 120°F.
- UL-listed models are equipped with tamper-resistant cover screws to prevent unauthorized entry
- Two conduit openings permit easy attachment to the local alarm system.
- The retard mechanism and dual SPDT switches are field-replaceable.
- The WFD series consists of a rugged, NEMA 4-rated enclosure.
