Potter PAD100-MIM is used to monitor the status of an initiating device(s) that contain a normally open set of dry contacts. The module is enclosed in a plastic case to protect against inadvertent shorts and ground faults. The case can be mounted using a single screw. The PAD100-MIM has a status indicator LED to indicate communication and alarm condition. In normal condition, the LED flashes when the device is being polled by the control panel. When the input is activated, the LED will flash at a fast rate.
Previous product
Back to products
CPG Signals SPHX PowerTone Explosion Proof Speaker
AED 3,070.20 VAT included
Next product
BW Technologies SR-H-MC Hydrogen Sulfide (H2S) Sensor
AED 516.60 AED 446.25 VAT included

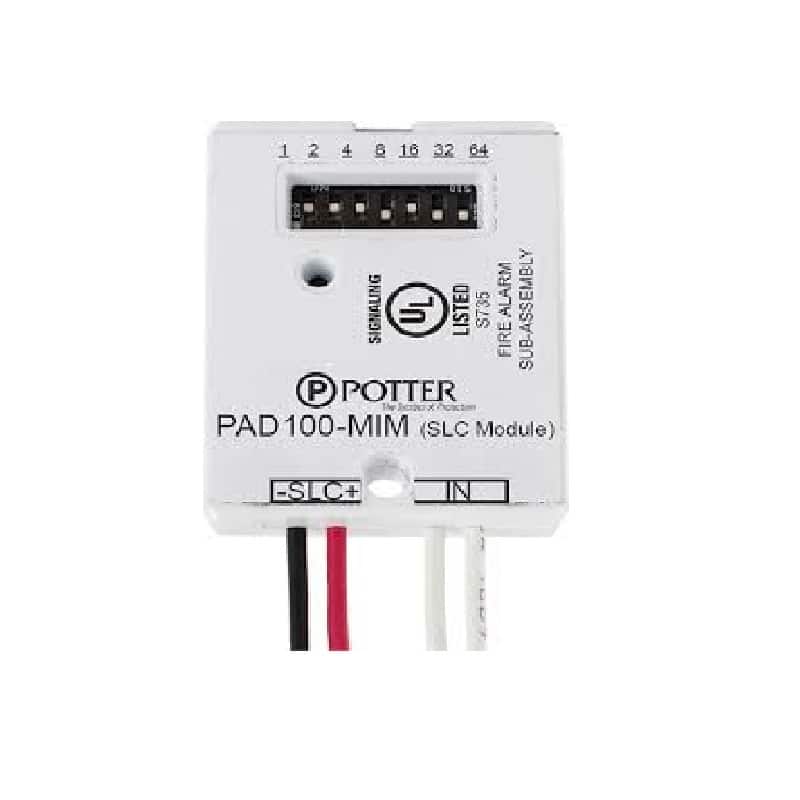

Potter PAD100-MIM Micro Input Module
AED 420.00 VAT included
Potter PAD100-MIM is used to monitor the status of an initiating device(s) that contain a normally open set of dry contacts. The module is enclosed in a plastic case to protect against inadvertent shorts and ground faults. The case can be mounted using a single screw. The PAD100-MIM has a status indicator LED to indicate communication and alarm condition.
Product Code : fs107771
Brand: Potter
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Specifications
- Product: Micro Input Module
- Brand: Potter
- Model: PAD100-MIM
- Operating Voltage: 24.0V
- Dimensions: 1.75” (44.5mm)L × 1.36” (34.5mm)W× .43” (11mm)D
- Mounting Options: 2-1/2” (64mm) deep single-gang box
- Max SLC Standby Current: 200?A
- Max SLC Alarm Current: 200?A
- IDC Input Circuit Wiring: Class B
- Max Wiring Resistance of IDC: 100 ?
- Max Wiring Capacitance of IDC: 1?F
- Operating Temperature Range: 32 to 120ºF (0 to 49ºC)
- Operating Humidity Range: 0 to 93% (non-condensing)
- Max no. of Module Per Loop: 127 units
- EOL Resistor: 5.1K ?
Features
- Monitors the status of an initiating device(s) that contain a normally open set of dry contacts
- Enclosed in a plastic case to protect against inadvertent shorts and ground faults.
- The case can be mounted using a single screw.
- UUKL Listed for Smoke Control
- product includes a 5-year warranty
