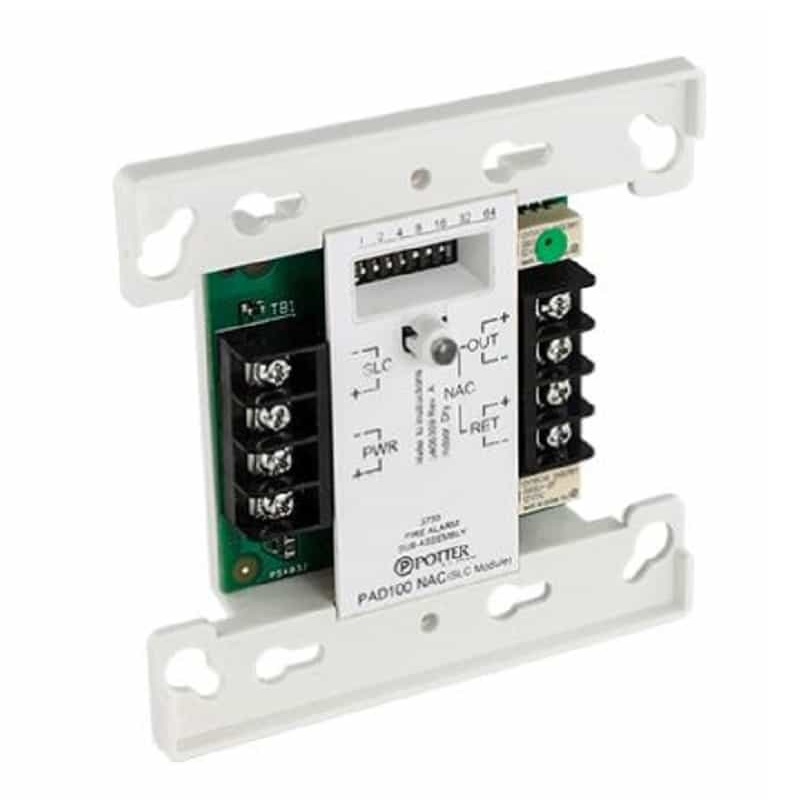

Potter PAD100-NAC Monitored Output Module(Programming Charges Extra Applicable)
AED 367.50 VAT included
Poter PAD100-NAC module uses one (1) address on an SLC Loop. The module provides a programmable source of power to supervise and control one (1) Class B or Class A Notification Appliance or one (1) Class B Releasing Circuit. The module requires and supervises a 24 VDC auxiliary power connection.
Description
Potter PAD100-NAC module uses one (1) address on an SLC Loop. The module provides a programmable source of power to supervise and control one (1) Class B or Class A Notification Appliance or one (1) Class B Releasing Circuit. The module requires and supervises a 24 VDC auxiliary power connection. The PAD100-NAC includes one red LED to indicate the module’s status. In normal conditions, the LED flashes when the device is being polled by the control panel.
Features
- 24 VDC Monitored Output Control
- NAC or Releasing Control
- LED indicates activation of module
- All terminals are power limited
- Listed with Potter/Amseco
- 5.1k ohm EOL
- Gentex & Cooper Wheelock sync modules and devices
- UL, cUL, and CSFM listed
Specifications
- Brand: Potter
- Model: PAD100
- Operating Voltage: 24.0V
- Max SLC Standby Current: 200μA
