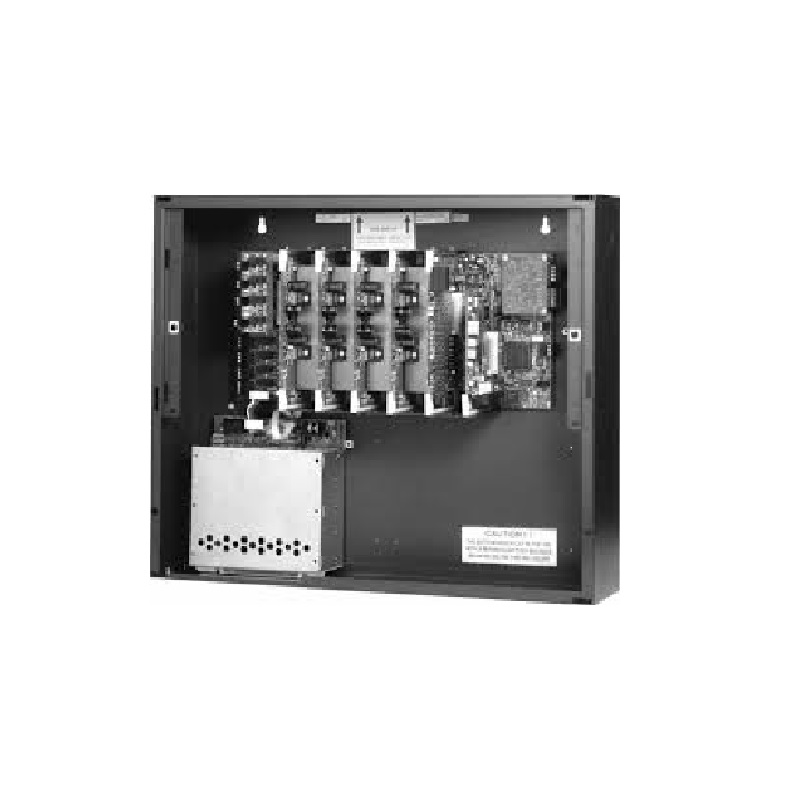

Notifier XPIQ-PSE Quad Intelligent Audio Transponder Power Supply, 240 VAC
See all products from notifierAED 6,365.63 VAT included
Description
Notifier XPIQ-PSE Quad Intelligent Audio Transponder Power Supply, 240 VAC is for distributed multichannel voice evacuation systems, capable of playing up to four simultaneous messages. It is an integrated audio amplification and distribution subsystem controlled by an FACP (Fire Alarm Control Panel) via the SLC (Signaling Line Circuit).
Features
- Easy software upgrading and programming accomplished by downloading from PC via serial port.
- XPIQ-PS(E) power supply control/supervision that includes AC, battery, and charger monitoring.
- AC trouble delay option (none, 8 hr. delay, 16 hr. delay).
- Nonvolatile memory for storing configuration data.
- Pluggable terminal blocks for field wiring.
- Accessory trouble input.
- Ground fault detection.
Specifications
- Product: Power Supply Unit
- Brand: Notifier
- Model: XPIQ-PSE
- Input voltage range: 20.4 to 28 VDC
- AC power: 240 VAC, 50/60 Hz, 1.75 A
- Battery trouble voltage: less than or equal to 22 VDC.
- Maximum current @ 20.4 VDC at full load (four 25-watt amplifiers): 9 A
- Protection (overcurrent, reverse-polarity): 15 A automotive minifuse.
