NCI 630 mm² Single‑Core Armoured Power Cable (600/1000 V)
AED 315.00 VAT included

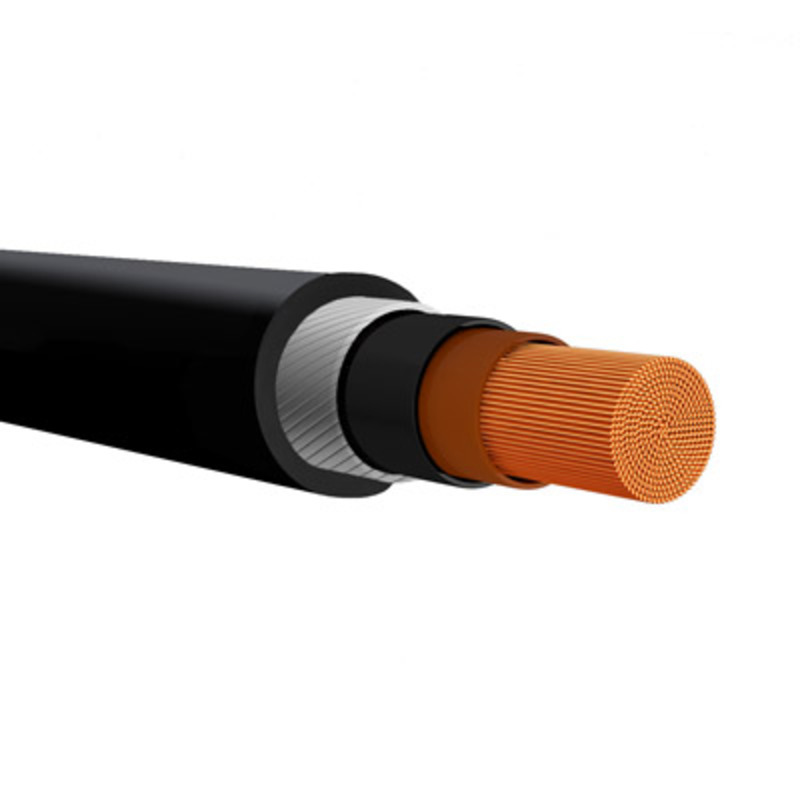

NCI – 630mm Single Core Armoured Cable
In stock
Product Code : fs0504325
Brand: NCI
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
NCI 630 mm² single-core armored cable is engineered for heavy-duty power transmission in demanding industrial and utility environments. It features a large cross-section conductor insulated with XLPE and protected by aluminum wire armor and a durable PVC or LSF outer sheath, offering excellent mechanical strength, moisture resistance, and fire safety. Rated for 600/1000 V, it’s perfectly suited for fixed installations, cable ducts, trefoil piping, and direct burial applications.
Features
- Robust Sheathing: PVC (type ST2) or low‑smoke, zero‑halogen (LSZH) sheath options available, designed for outdoor and fire-risk environments
- Armoured With Aluminium Wire (AWA): Helically wound for mechanical protection and non-magnetic, reducing eddy current losses
- Standards Compliant: Meets IEC 60502, BS 5467/6724, and BS 7655 regulations for insulation, armouring, and fire resistance
- XLPE Insulation: Cross-linked polyethylene rated for continuous use at 90 °C, excels in electrical and thermal stability
- Voltage Rating 600/1000 V: Suitable for low-voltage industrial, commercial, and infrastructure use cases
- Operating Temperature Range: –15 °C to +90 °C, ensuring reliability in diverse climates
- Single-Core, 630 mm² Conductor: Massive capacity suited for high-current systems
Specifications
- Conductor Size: 630 mm² (Class 2 copper or Class 1 aluminium available)
- Conductor Type: Stranded circular (copper) / solid or stranded aluminium
- Insulation Material: XLPE (Cross-linked polyethylene) rated 90 °C continuous
- Armouring: Aluminium Wire Armour (AWA), helically applied
- Outer Sheath: PVC Type ST2 or LSZH/MDPE option
- Voltage Rating: 0.6/1 kV (600/1000 V AC)
- Temperature Range: –15 °C to +90 °C
- Cable Outer Diameter: Approx. 45 mm
- Weight: Approx. 7,100 kg/km
