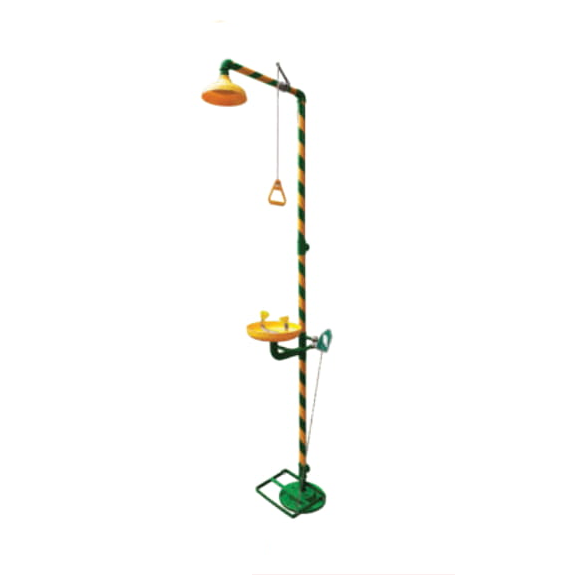

Matsuda M339670920 Safety Shower & Eye Washer is activated by a pull rod and the eyewash is activated by a flag handle or foot treadle. Two spray-type outlet heads deliver a flood of water for rinsing eyes. Spray Head Assembly: Two spray heads. Each head has a dust cover, internal flow control, and filter to remove impurities from the water flow. Eye Wash Valve: 1/2″ IPS Stainless Steel ball stay-open ball valve.
The valve is activated by a flag handle or foot treadle. The unit remains in operation until the handle is returned to the closed position. Pipe and Fittings: Schedule 1-1/4″,1″, and 1/2″ galvanized steel. Furnished with yellow polyethylene covers for vertical piping for corrosion resistance.Working Pressure: 0.2-0.8Mpa flow pressure, 0.9Mpa maximum static pressure. Quality Assurance: Valve, bowl, and spray head assembly are factory assembled.
