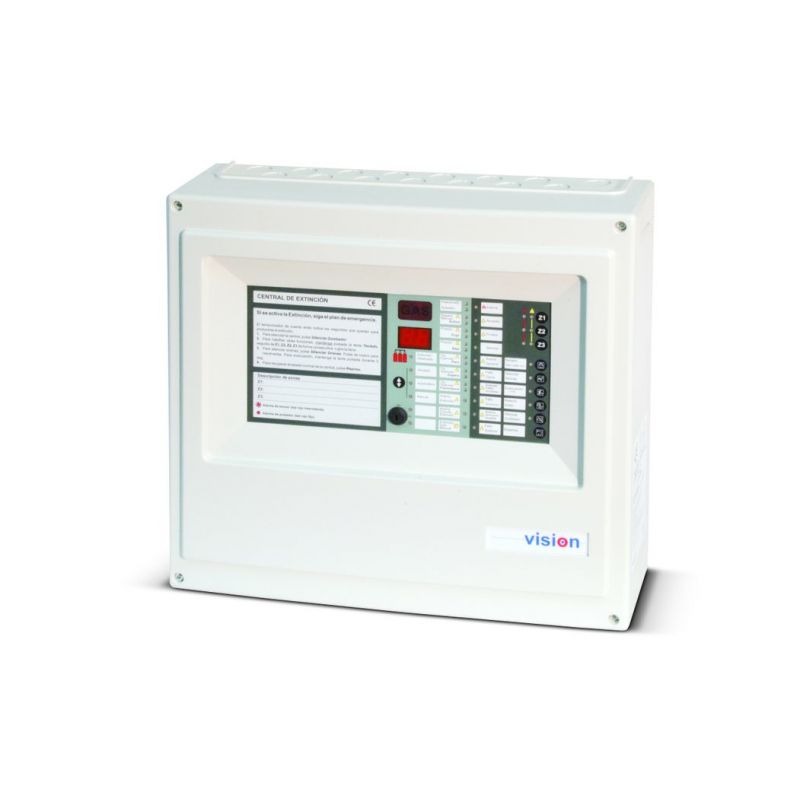

Honeywell – Extinguishing Panel – VSN-RP1R-PLUS2

Extinction center. Fire detection and extinction control panel controlled by a double microprocessor with redundancy, with a history of the last 450 events. It has system status indicator LEDs and a two-digit discharge time display and incorporates a manual extinguishing button, a gas triggered sign and a key for selecting manual, automatic or out of service mode.. . Fully programmable: waiting and pause times, discharge timing, cross zone, extinction sequence, etc. It incorporates input circuits for conventional detectors, input for stop or wait button, manual button, monitoring devices such as pressure switch, low pressure, open doors and mechanical override. It has output circuits for the indication of the different stages of the system, siren output with three stages: alert, alarm, and extinction, gas triggered sign, double extinction circuit and circuits for closing gates and signaling the status of the system
