Hochiki CHQ-SZM2(SCI) Single Zone Monitor with SCI
AED 228.90 VAT included
Next product
Hochiki CHQ-WB(RED)/RL Wall Beacon - Red Case, Red Leds
AED 252.00 VAT included

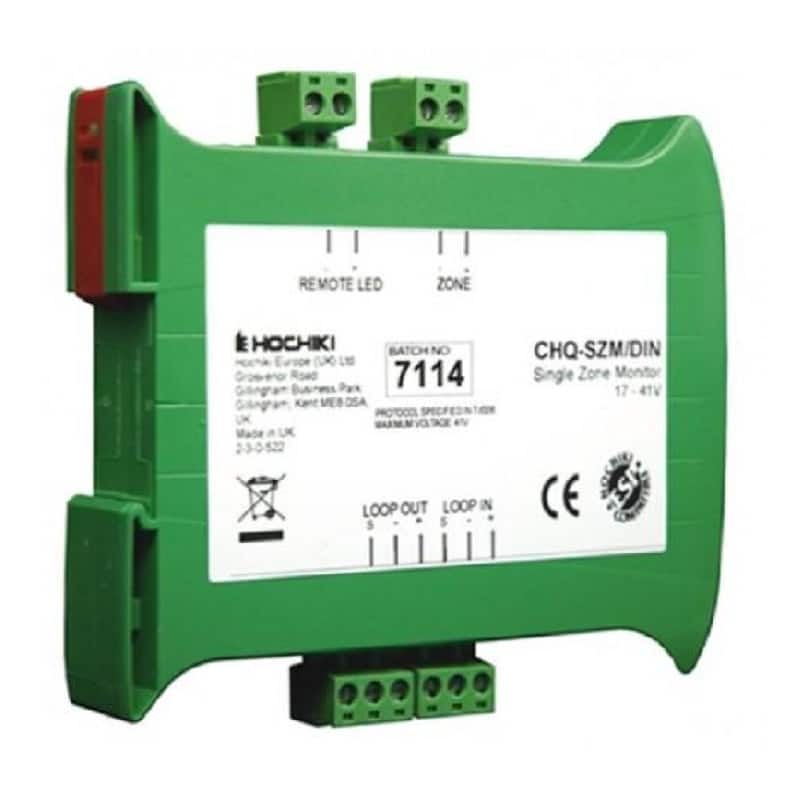

Hochiki CHQ-SZM2/DIN(SCI) Single Zone Monitor – DIN Enclosure with SCI
See all products from hochikiAED 259.88 VAT included
Model CHQ-SZM2/DIN(SCI) is a Single Zone Monitor designed to allow up to 6 conventional detectors to be interfaced to Hochiki’s ESP analogue addressable system. The unit is supplied as a DIN Rail mountable version but a boxed module version is also available.
In stock
Product Code : fs107017
Brand: Hochiki
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Model CHQ-SZM2/DIN(SCI) is a Single Zone Monitor designed to allow up to 6 conventional detectors to be interfaced to Hochiki’s ESP analogue addressable system. The unit is supplied as a DIN Rail mountable version but a boxed module version is also available.
Both models feature an integral short-circuit isolator. The unit utilises simple DIL switches for reliable addressing. NOTE: The conventional zone on the CHQ-SZM2/DIN(SCI) does not support any line continuity options; if Call Points are being interfaced they should be wired at the beginning of the zone.
Features
- Loop powered
- Up to 6 Conventional Detectors
- Single loop address
- Remote LED output
- Fully monitored for short and open circuit faults
- Boxed module version available
- Both models feature an integral short-circuit isolator
- Both models approved by LPCB and VdS
Specifications
- Brand: Hochiki
- Current in short-circuit: 8 mA
- Maximum short-circuit current: (Loop) 1 A
- E.O.L device: TE-RH-E (polarity conscious)
- Zone voltage: 15.3 V - 17.1 V
- Zone resistance: 50 ? (Max)
- Zone capacitance: 0.3 ?F (Max)
