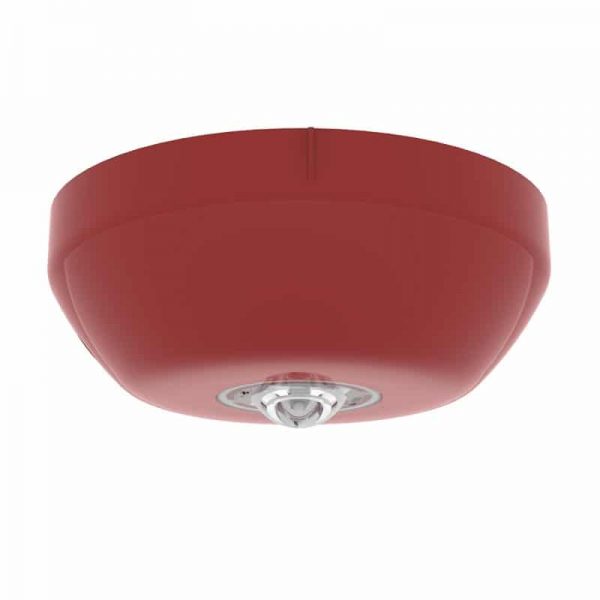

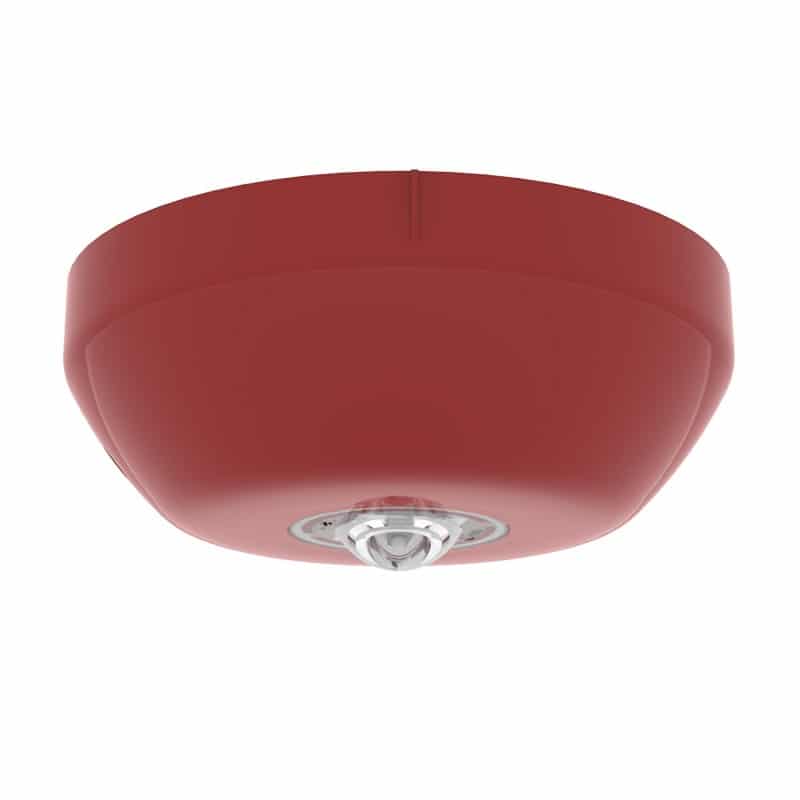

Hochiki CHQ-CB(RED)/WL-15 Ceiling BEACON – RED CASE, WHITE LEDS (15M)
See all products from hochikiAED 285.60 VAT included
An Addressable Loop-Powered Beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash.
In stock
Product Code : fs108487
Brand: Hochiki
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
An Addressable Loop-Powered Beacon, with a high intensity LED and a custom designed free-form optic which produces a highly visible flash. Coverage diameters include 5m, 7.5m and 10m. The unit is designed to fit the YBN-R/3 and YBN-R/3(SCI) bases or the YBO-BS Base Sounder. This model features a red case and white LEDs. Selectable from the CIE (check panel compatibility).
Specifications
- Brand: Hochiki
- Base Fixing Centres: 48 ~ 74mm
- Diameter: D100 mm
- Height: H41 mm
- Humidity: 95% RH - Non Condensing (at 40 °C)
- IP Rating: Indoor (Type A) IP21 Outdoor (Type B) IP33 3 (Target IP65)
- Operating Temperature: -10 °C to +50 °C
- Operating Voltage: 17 ~ 41 Vdc
- Quiescent Current: 250 uA
- Storage Temperature: -30 °C to +70 °C
- Weight: 120 g
Features
- EN54-23 compliant
- Loop powered
- High intensity flash
- Range of coverage diameters
- White LEDs
- Approved by LPCB (Certificate No 164s/03)
