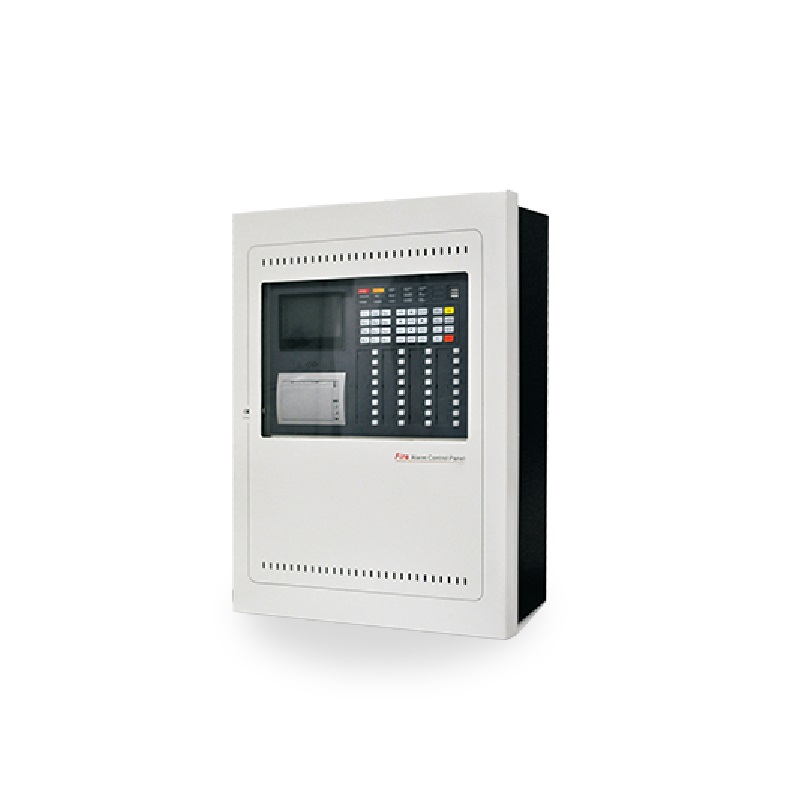

Frontier FRN 3002 Intelligent Addressable Fire Alarm Control Panel – 1 Loop

Name: Frontier FRN 3002 Intelligent Addressable Fire Alarm Control Panel - 1 Loop
SKU: fs05022767
Availability: InStock

See all products from frontier

AED 2,257.50 VAT included

Compare

Product Code : fs05022767 Brand: Frontier Seller: Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Frontier FRN 3002 Intelligent Addressable Fire Alarm Control Panel designed to comply with the latest versions of EN 54 parts 2&4 with qualities of simple installation, operation and easy maintenance. Zone indication and control panel for 32 zones gives a quick indication of the location of an alarm. The USB port makes the load and save of configuration data or historical data convenient for system commissioning and maintenance. It supports the detector/module testing individually.

Features

USB port makes the load and save of configuration data or historical data convenient for system commissioning and maintenance.
Zone indication and control panel for 32 zones gives a quick indication of the location of an alarm.
Output module manual start/stop facilitates the commissioning and operating.
Flexible and intuitive cause and effect programming on front of panel.
An standalone programmable conventional sounder circuit output.
Record capacity of 1000 historical events with date/time stamp.
It supports the detector/module testing individually.
Hierarchy management with three access levels.
Anti-tamper protection by a key lock.
Integral power supply and battery.

Specifications

Product: Addressable Fire Alarm Control Panel
Brand: Frontier
Model: FRN 3002
Mains supply: 230VAC (-15%, +10%). 47~63Hz. Max current 0.8A
Battery: Max. capacity 2×12V/17Ah; Min. capacity 2×12V/12Ah VRLA.
Max. charging current: 1.2A
Class Change (+, -): Programmable input terminal. Shorting this terminal can enable S.C.Out
Loop Out (+, -): Polarized signal cable from the FACP connects to 324 addressable devices
Loop In (+, -): Polarized signal cable returns to the FACP
Dimension(H×W×D): 560×430×170mm
