Description

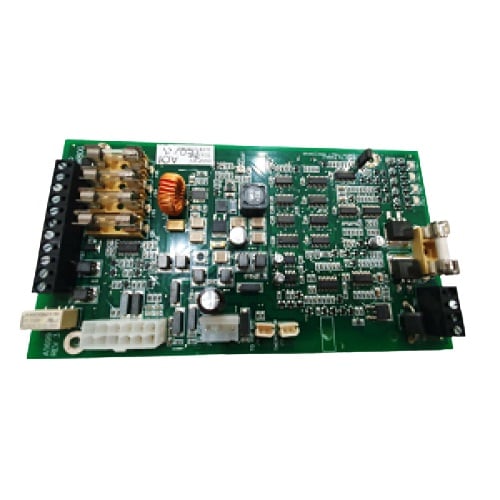

Fireclass PMM800 Power Monitor Module is designed to fix studs on the top of the PSM800/820/821. The PMM 800 is a FireClass Addressable power supply monitoring module that is usually used with the PSM 800/820/821 power supply module to make an addressable power supply.
Features
- FireClass addressable power supply monitoring module and is designed to fix to studs on the top of the PSM800/820/821
- 230 VAC mains supply is connected to the input of the power supply unit (BAQ60T24 or BAQ140T24)
- The 28.6 VDC output from the power supply unit is fed to the input of the PMM800.
- These are F1AL 250VAC 20x5mm fast blow glass fuses
- The PMM800 provides four 24 V outputs
- Each output is fitted with a fuse
Specifications
- Product: Power Monitor Module
- Brand: Fireclass
- Model: PMM800
- Mains Supply: 230 V AC, 50/60Hz. Input current 1.6 A. Input power 380 Watt maximum.
- Output: Four “24 V outputs” (screw terminals). Range 21 to 28.6 V DC.
- Output Capacity: 3.1 A continuous excluding battery charge current
- Fuses: 24 V outputs fitted with 1 A fast blow 5 x 20 mm glass fuses.
- Operating Temperature: -5 °C to +40 °C
- Relative Humidity: 95% (non-condensing).
