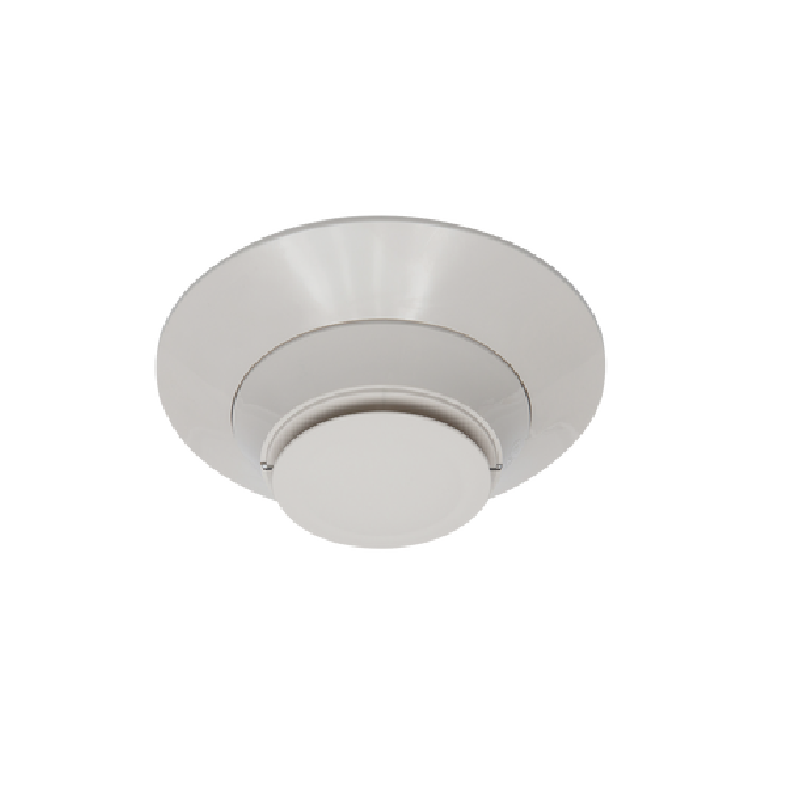

Farenhyt IDP-PHOTO-IV Intelligent Addressable Photoelectric Smoke Detectors are designed for both performance and aesthetics. A new modern, sleek, contemporary design and enhanced optical sensing chamber is engineered to sense smoke produced by a wide range of combustion sources in accordance with more stringent code standards. The IDP-PHOTO-IV Series detector sensitivity can be programmed in the control panel software. Sensitivity is continuously monitored and reported to the panel. Point ID capability allows each detector’s address to be set with rotary, decimal address switches, providing exact detector location for selective maintenance when chamber contamination reaches an unacceptable level.
Previous product
Back to products
Farenhyt RA-100R 4 x 20 Display Remote Annunciator
AED 6,174.00 VAT included
Next product

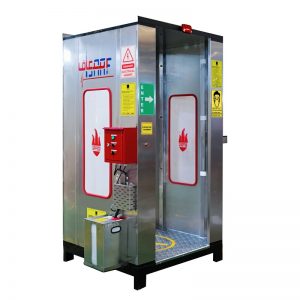

SFFECO Disinfection Chamber
AED 18,900.00 AED 15,750.00 VAT included
Farenhyt IDP-PHOTO-IV Intelligent Addressable Photoelectric Smoke Detector
AED 567.00 AED 157.50 VAT included
Specifications
- Product: Photoelectric Smoke Detector
- Brand: Farenhyt
- Model: IDP-PHOTO-IV
- Voltage Range: 15 to 32VDC peak
- Operating Current @ 24VDC: 200µA (one communication every 5 seconds with green LED blink on communication)
- Maximum Current: 4.5mA @ 24VDC (one communication every 5 seconds with amber LED solid on)
- Thermal Ratings: Fixed Temperature Set point: 135°F (57°C)
- Diameter: 6.2" (156mm) installed in B300-6 base 4.1" (104 mm) installed in B501 base
- Weight: 3.4 oz (95 g)
Features
- Plugs into separate base for ease of installation and maintenance
- Built-in functional test switch activated by external magnet
- Stable communication technique with noise immunity
- New modern profile for improved aesthetics
- Optional remote, single- gang LED accessory
- Dual LED design provides 360° viewing angle
- Built-in tamper resistant feature
- Sealed against back pressure
- Expanded color options
