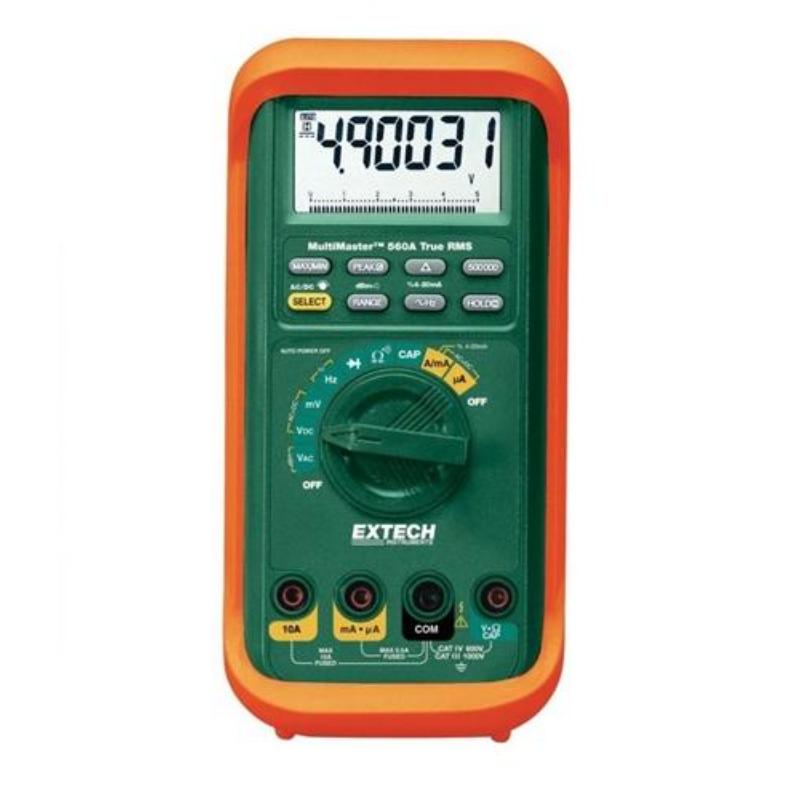

Extech – Multi Master High Accuracy Multimeter – MM560A

Name: Extech - Multi Master High Accuracy Multimeter - MM560A
SKU: fs0506436
Price: 950.00 AED
Availability: InStock

See all products from extech

AED 950.00 VAT included

Compare

Product Code : fs0506436 Brand: Extech Seller: Fireshop1001Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

The MM560A is a high accuracy multimeter. Full range multimeter functions with 0.03% basic DCV accuracy and up to 20kHz True RMS ACV bandwidth. 4 to 20mA, displayed as 0-100% for process current measurements. Capacitance, Frequency, Resistance, Continuity, Duty cycle and Diode tests with 600V input protection on all functions (1000V on Voltage). Max/Min recording with auto ranging, Auto Power off, Relative & Hold, Peak function captures transient pulses. Optional Windows compatible PC communication software and optically isolated cable. Complete with test leads, protective holster with stand and 9V battery.

Features

Full range multimeter functions with 0.03% basic DCV accuracy and up to 20kHz True RMS ACV bandwidth
50,000 count (500,000 for DCV and Hz) backlit LCD display with bargraph
Special True RMS combination AC+DC function for measurements of rectified AC (non-symmetrical) voltage and current waveforms
Filtered frequency function with adjustable trigger levels for variable speed motor drives and high voltage applications
AC/DC current to 10A with 0.01µA resolution
Capacitance, Frequency, Resistance, Continuity, Duty cycle and Diode tests with 600V input protection on all functions (1000V on Voltage)
High resolution to 1µV, 0.0001Hz, 0.01Ohm, 0.01µA and 0.1°
Max/Min recording with autoranging, Auto Power off, Relative & Hold, Peak function captures transient pulses
Optional Windows® compatible PC communication software and optically isolated cable
Complete with test leads, protective holster with stand and 9V battery
