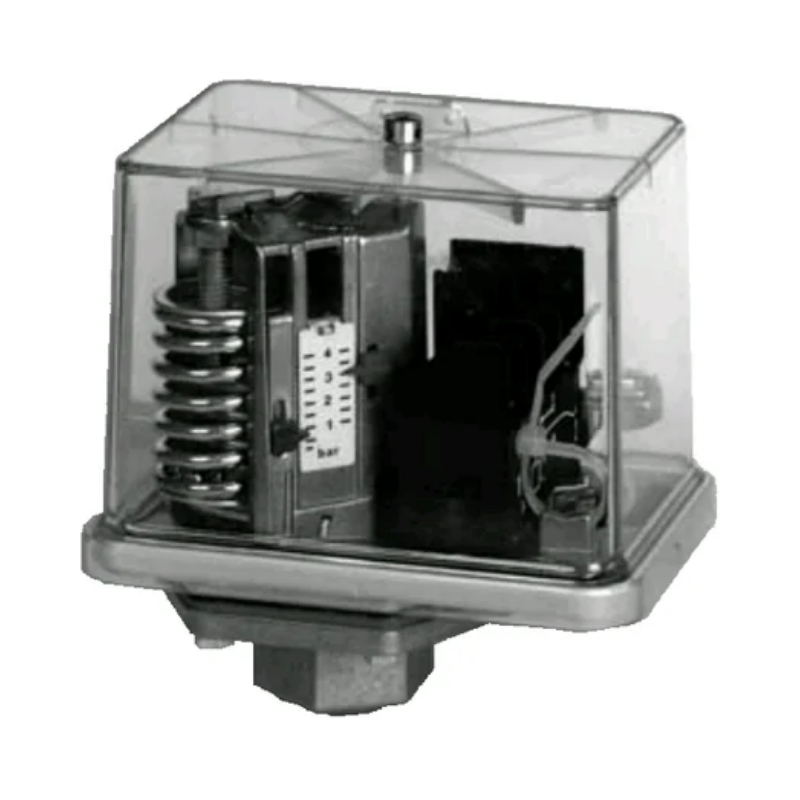

EMERSON Pressure Switch 0-15 Bar FF4-16DAH
AED 546.00 VAT included
Mechanical pressure switch with 0-15 Bar adjustable range, SPDT contacts, and IP65 enclosure. For HVAC and industrial applications.
In stock
Product Code : fs0507612
Brand: Emerson
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The EMERSON FF4-16DAH pressure switch features a rugged brass sensing element with 1/4″ NPT male connection. Adjustable set point range 0-15 Bar (0-217 PSI) with ±1% repeatability. Includes SPDT snap-action contacts rated for 16A resistive loads.
Features
- Adjustable set point (0-15 Bar)
- SPDT contacts (16A @ 250VAC)
- IP65 protection rating
- 1/4" NPT male process connection
- ±1% repeatability
- Overpressure protection to 25 Bar
- Polycarbonate weatherproof housing
- Manual reset option
- CE compliant
Specifications
- Range: 0-15 Bar (0-217 PSI)
- Electrical Rating: 16A @ 250VAC
- Connection: 1/4" NPT male
- Housing: IP65 polycarbonate
- Repeatability: ±1%
- Max Pressure: 25 Bar (burst)
- Temp Range: -20°C to +80°C
- Contact Type: SPDT snap-action
- Enclosure: Blue polycarbonate
- Standards: EN 60947-5-1
