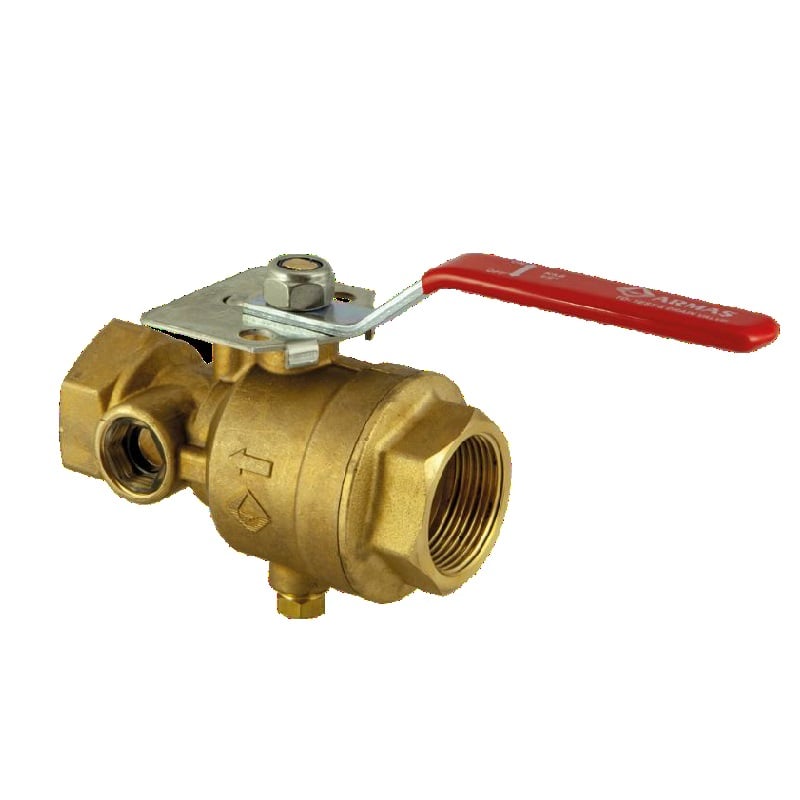

Armas DN25 Test And Drain Valve is a type of ball valve used in fire systems, especially for testing whether the system is working or not. It is installed on the system from the fire alarm valves to the sprinkler installation in the required zones. The ball used in the test and drain valve is rotatable via the stem by the lever and consists of 3 positions as a test, drain, and off. In the test position, the ball hole is an orifice of the diameter determined according to the smallest diameter sprinkler that is located at the zonal. With this orifice, it is possible to calculate and test the amount and duration of the water to be discharged from the sprinkler if needed. The drain position ensures that it can be used as a drain valve when requested. The flow through the sight glass on both sides of the Test and Drain Valve can be observed.
Previous product
Back to products
Beauty Sky S-D30 Sanitizing Gate - 300 cm (L) X 120 cm (W) X 235 cm (H)
AED 20,868.75 VAT included
Next product
Hochiki SLR-E-IS Conventional Intrinsically Photoelectric Smoke Detector
AED 628.95 VAT included
Armas DN25 Test And Drain Valve – 1 Inch
AED 252.00 VAT included
Specifications
- Product: Test and Drain Valve
- Brand: Armas
- Model: DN25
- Valve Size: 1 Inch
- Valve Type: Brass Body, 90 ° position fixing
- Pressure Class: 21Bar / 300 Psi
- Orifice: 1/2"
- K Factor (UL Listed): K5.6(80)
- Threaded: BSP - NPT
Features
- Before installing the Test and Drain Valve, the pipeline must be cleaned from the foreign materials by passing the fluid.
- When the Test and Drain Valve is mounted, it should be in the same direction as the pipeline.
- The Test and Drain Valve can be installed horizontally or vertically.
- Install the Test Drain Valve in the direction of the arrow indicated.
